Belimo CH24-SR-R100.2 - modulating linear actuator

Belimo CH24-SR-R100.2 - modulating linear actuator

Belimo
zł1,189.41
VAT included
zł967.00 tax excluded

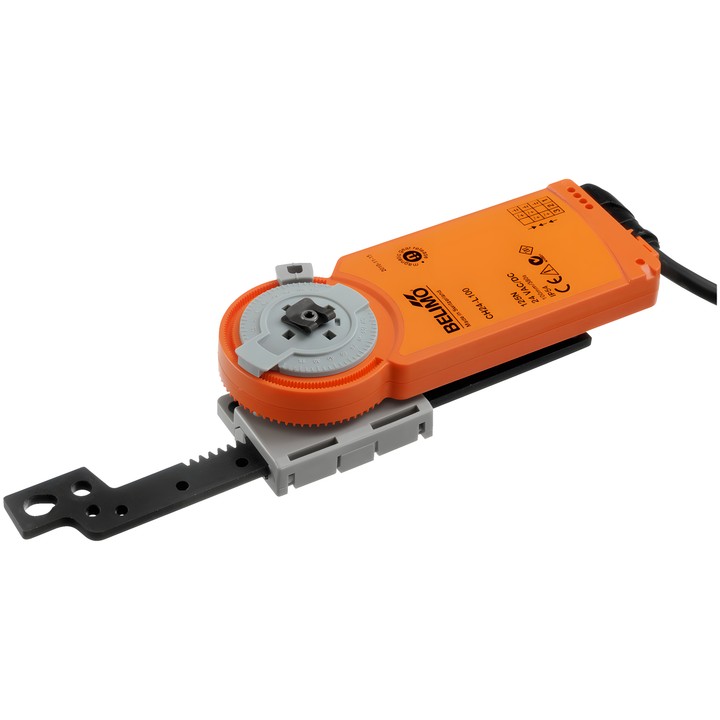

Belimo CH24-SR-R100.2 linear actuator with a force of 125 N, powered by AC/DC 24 V. DC 2...10 V control and 2...10 V feedback signal; running time is 380 s / 100 mm.

The maximum 100 mm stroke can be adjusted in 20 mm increments. Degree of protection IP54.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CH24-SR-R100.2 – linear actuator

Linear actuator with modulating control, designed to position dampers and slide valves in building services systems. The documentation specifies an air damper size of up to approx. 0.8 m².

Key features and parameters

  • Actuator force: 125 N.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: DC 2...10 V; position feedback: 2...10 V.
  • Stroke: 100 mm; maximum stroke adjustable in 20 mm increments.
  • Motor running time: 380 s / 100 mm.
  • Power consumption during operation: 1 W; at rest: 0.5 W; power for cable sizing: 1.5 VA.
  • Direction of movement at Y = 0 V: extended.
  • Manual adjustment using a magnet.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].
  • Multipack: 20 pcs.

  • Brand
    Belimo
  • Reference
    CH24-SR-R100.2
  • EAN13
    7630498119262

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    125 N
  • Manual override
    Using a magnet
  • Stroke
    100 mm
  • Running time (motor)
    380 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Y = 0 V: extended
