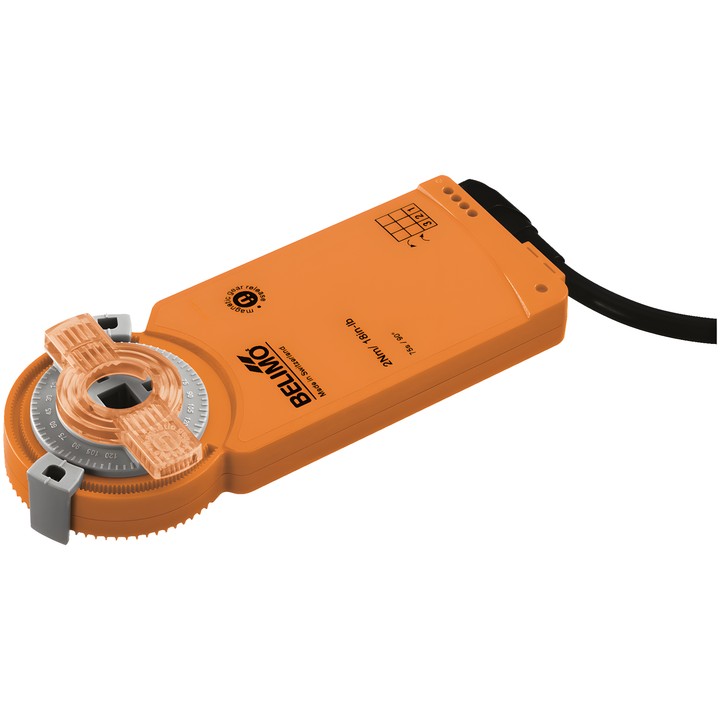

Belimo CM24G-SR-F-L - modulating damper actuator

Name: Belimo CM24G-SR-F-L - modulating damper actuator
Brand: Belimo
SKU: CM24G-SR-F-L
Price: 1141.44 PLN
Availability: OutOfStock

Belimo

zł1,141.44

VAT included

zł928.00 tax excluded

Belimo CM24G-SR-F-L is a damper actuator with a torque of 2 Nm, powered by AC/DC 24 V and controlled by a 2...10 V signal. It provides a 2...10 V position feedback signal and a running time of 75 s / 90°.

It has an 8x8 mm form-fit connection, a 1 m cable, 4x 0.75 mm² and IEC/EN IP66 protection.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24G-SR-F-L damper actuator

This modulating actuator is designed to regulate dampers in technical building systems. According to the manufacturer's documentation, it supports air dampers with an area of up to approx. 0.4 m².

Key specifications

Torque: 2 Nm.
Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
Motor running time: 75 s / 90°; rotation angle: max. 95° with mechanical stops.
Motor direction of rotation: counterclockwise (ccw).
Power consumption during operation: 1 W; in the idle position: 0.5 W; for cable sizing: 1.5 VA.
Mechanical connection: 8x8 mm form-fit connection; power and control connection: 1 m cable, 4x 0.75 mm².
Manual adjustment using a magnet; mechanical position indicator.
IEC/EN IP66 protection; ambient temperature: -30...50°C [-22...122°F].

To ensure IP66 protection, the rear of the actuator must fit tightly against the damper housing. When installed rotated by 180°, with the front of the actuator pressed against the damper housing, only IP54 protection is provided.
