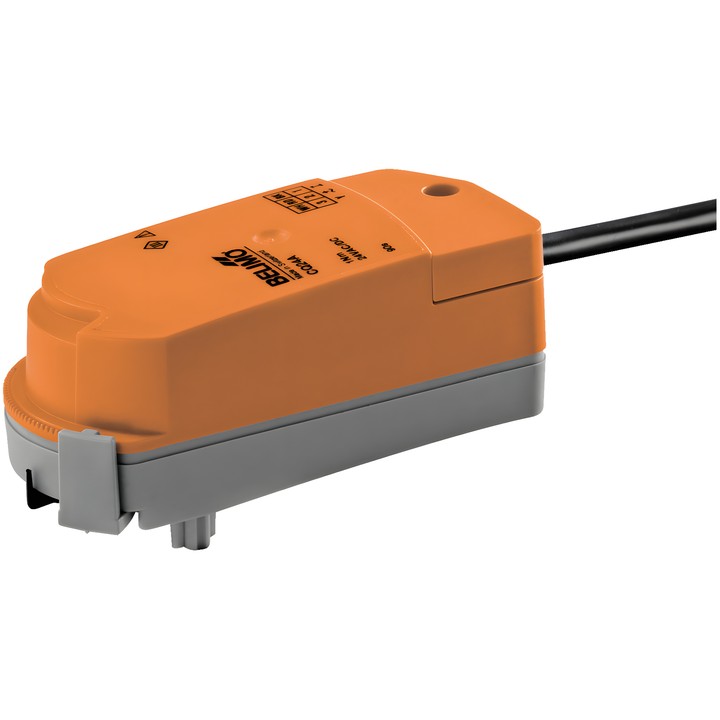

Belimo CQ24A - rotary actuator for zone valves

Name: Belimo CQ24A - rotary actuator for zone valves
Brand: Belimo
SKU: CQ24A
Price: 314.68 PLN
Availability: BackOrder

Belimo

zł314.68

VAT included

zł255.84 tax excluded

Belimo CQ24A rotary actuator for zone valves, with a torque of 1 Nm and AC/DC 24 V supply. Supports Close/Open and 3-point control; running time is 75 s / 90°.

Tool-free snap-on installation, flow adjustment and IP40 protection rating.

Delivery in approx. 14 days

Belimo CQ24A – actuator for zone valves

Electronic rotary actuator with snap-on installation. The rotation angle can be adjusted using a clip to set the valve's maximum flow.

Key technical data

Torque: 1 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Control: Close/Open, 3-point.
Running time: 75 s / 90°.
Power consumption: 0.3 W during operation and 0.2 W at rest; sizing power for cable selection: 0.6 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Degree of protection IEC/EN: IP40; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Manual adjustment after disengaging the actuator; position indicator.
Rotation angle adjustment with a clip in 2.5° increments; overload protection and automatic stop when the end stop is reached.
