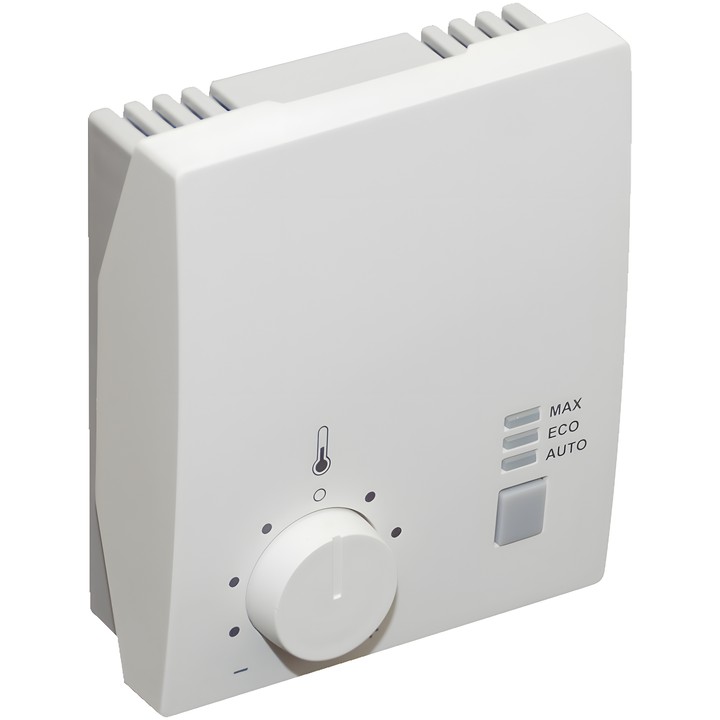

Belimo CR24-B2 - room temperature controller

Name: Belimo CR24-B2 - room temperature controller
Brand: Belimo
SKU: CR24-B2
Price: 749.22 PLN
Availability: BackOrder

Belimo

zł749.22

VAT included

zł609.12 tax excluded

Room temperature controller with two sequences: (0)2...10 V output for VAV control and 3-point heating output. AC 24 V 50/60 Hz supply.

AUTO / ECO / MAX mode selection and LED status indication; setpoint adjustment via a ±3 K dial.

Delivery in approx. 14 days

Belimo CR24-B2 – single-room temperature controller

Controller with ao1 system output for Belimo VAV controllers and ao3 3-point heating output. It measures room temperature and allows the operating mode to be selected on the device.

Key features and specifications

Nominal supply: AC 24 V 50/60 Hz; voltage range: AC 19.2...28.8 V.
VAV output ao1: (0)2...10 V, max. 5 mA.
Heating output ao3: 3-point signal, AC 24 V, max. 0.5 A / 10 VA.
P control characteristic; heating temperature setpoint range 15...36°C (default 21°C).
Mode switch and LED indication: AUTO / ECO / MAX; setpoint adjustment dial ±3 K.
Inputs for an external NTC temperature sensor, setpoint shift via a 0...10 V signal, and the Energy hold off, Stand-by and Air flush functions.
Frost protection activated when the room temperature is below 10°C.
IP30 protection rating according to EN 60529; screw terminals max. 1.5mm².
