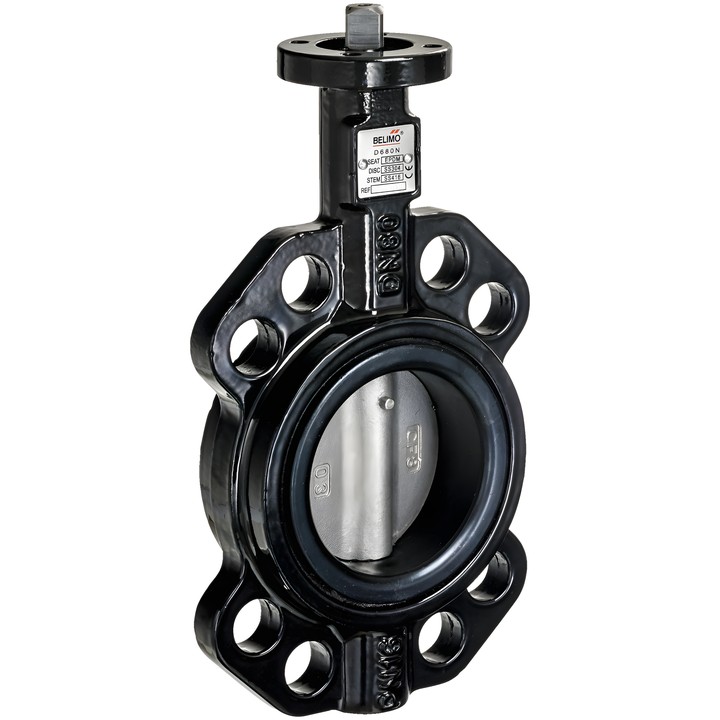

Belimo D665N - DN 65 2-way butterfly valve

Name: Belimo D665N - DN 65 2-way butterfly valve
Brand: Belimo
SKU: D665N
Price: 621.92 PLN
Availability: BackOrder

zł621.92

VAT included

zł505.63 tax excluded

Belimo D665N is a DN 65 2-way wafer-type butterfly valve, PN 6 / 10 / 16. Flow parameters: Kvs 50 m³/h and Kvmax 170 m³/h.

Designed for water and water containing up to 50% by volume glycol; fluid temperature is -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D665N butterfly valve

2-way wafer-type butterfly valve for open and closed water systems. It can be used to switch heat generators or cooling equipment on and off.

Nominal diameter DN 65; flange connection PN 6 / 10 / 16.
Kvs 50 m³/h; Kvmax 170 m³/h.
Fluid: water, water containing up to 50% by volume glycol.
Fluid temperature: -20...120°C [-4...248°F].
Maximum differential pressure ∆pmax: 300 kPa.
Flow characteristic: 0...60% opening angle — equal percentage; 0...100% opening angle — S-shaped.
Rotation angle: 90°; leakage rate A (EN 12266-1).
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: stainless steel AISI 304 (1.4301); seat: EPDM.

Permitted mounting position: from vertical to horizontal relative to the spindle. Installation with the spindle pointing downwards is not permitted.
