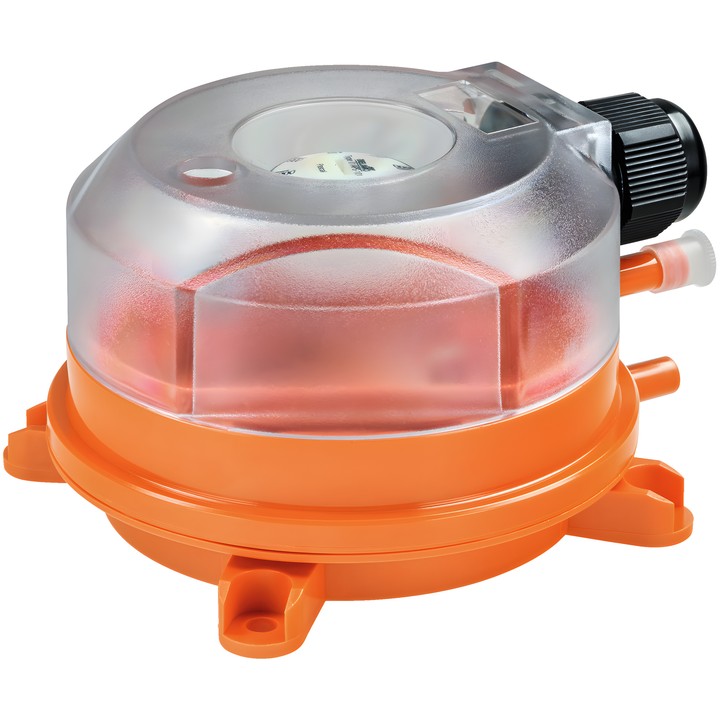

Belimo 01APS-105 - differential pressure switch

Belimo 01APS-105 - differential pressure switch

Belimo
zł157.75
VAT included
zł128.25 tax excluded

Belimo 01APS-105 differential pressure switch for monitoring positive pressure, negative pressure and differential air pressure, as well as other non-flammable, non-aggressive gases. Measuring range: 1000...5000 Pa. The device has an adjustable setpoint and automatic reset.

Switching output; max. contact load 1,0 A / AC 250 V. Protection rating IP54 / NEMA 13.

Delivery in approx. 14 days
Share

Belimo 01APS-105 differential pressure switch

The device is used to monitor positive pressure, negative pressure and differential air pressure, as well as other non-flammable, non-aggressive gases in HVAC systems and energy management applications. It has an adjustable setpoint and automatic reset.

Key features

  • Measuring range: 1000...5000 Pa.
  • Repeatability: ±1%, min. ±5 Pa; switching differential: 250 Pa.
  • Burst pressure: 10 kPa.
  • Output signal: switch; max. contact load: 1,0 A / AC 250 V.
  • Electrical connection: terminals for wires 0.5...1.5 mm².
  • Protection rating: IP54 / NEMA 13.
  • Included: 2 m PVC tube, 2 plastic duct connectors and screws.

Vertical installation with the pressure ports facing downwards is recommended. The pressure switch must not be installed upside down.

  • Brand
    Belimo
  • Reference
    01APS-105
  • EAN13
    7630498100024

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    Switch
  • Pressure measuring range
    1000...5000 Pa | 4.00...20.00 inch WC
  • Pressure switch output note
    Max. contact load max. 1.0 A / AC 250 V

Techniczna karta katalogowa

Download (2.27MB)

Instrukcja montażu

Download (1023.69KB)

Techniczna karta katalogowa – 01APS-1..

Download (2.27MB)

Environmental Declaration – 01APS..

Download (71.81KB)
