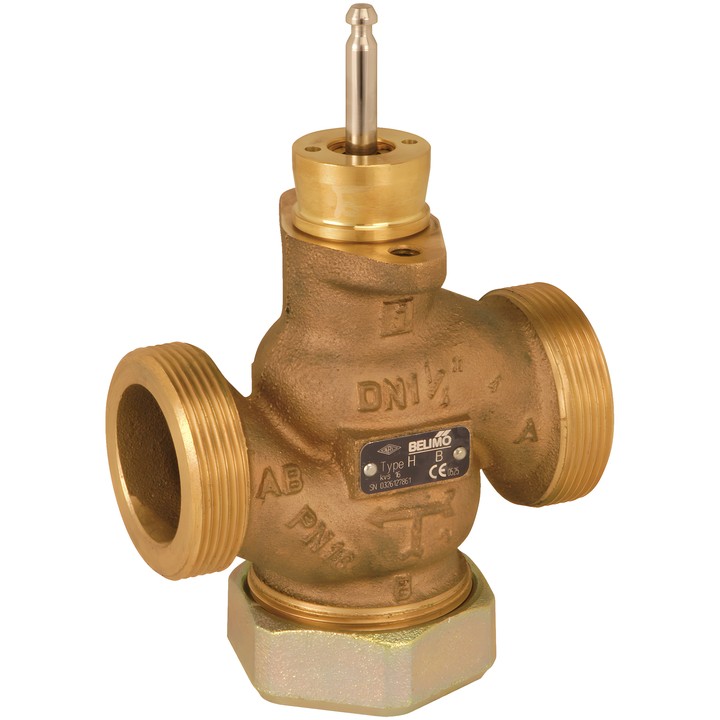

Belimo H411B - 2-way globe valve DN 15

Name: Belimo H411B - 2-way globe valve DN 15
Brand: Belimo
SKU: H411B
Price: 629.53 PLN
Availability: BackOrder

Belimo

zł629.53

VAT included

zł511.81 tax excluded

Belimo H411B is a 2-way globe valve with G 1 1/8" male thread, rated DN 15, PN 16 and Kvs 0.63 m³/h. Designed for water-side control in ventilation and heating systems.

Delivery in approx. 14 days

Belimo H411B – 2-way globe valve

Valve for open and closed water systems, designed for water-side control in ventilation and heating systems. The valve plug is moved by a globe valve actuator.

Key features

DN 15, PN 16; G 1 1/8" male thread.
Kvs 0.63 m³/h; stroke 15 mm.
Fluid: water or water with a maximum of 50% by volume glycol.
Fluid temperature: -10...120°C [14...248°F].
Flow characteristic: equal percentage; permissible leakage: max. 0.05% of the Kvs value.
Valve body: CC499K; closing element and stem: stainless steel; stem seal: EPDM O-ring.

Installation instructions

Installation is permitted from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body. Stem heating is required at fluid temperatures of -10...2°C.

Brand

Belimo
Reference

H411B
EAN13

7630498105579

Kvs

0.63 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

When the medium temperature is -10...2°C, shaft heating is recommended.
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Max. 0.05% of Kvs value
Pipe connection

External thread
