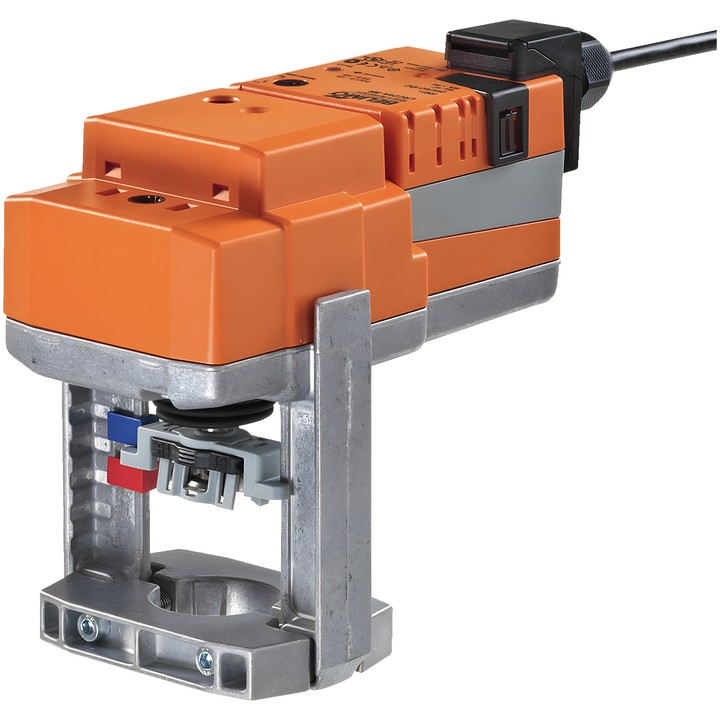

Belimo LVC24A-SR-TPC - linear actuator for globe valves

Belimo LVC24A-SR-TPC – actuator for globe valves

Modulating actuator for 2- and 3-way globe valves. The Y control signal determines the actuator position, while voltage U provides an electrical position indication.

Key specifications

• Actuating force: 500 N; stroke: 15 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Y operating range: 2...10 V; U position feedback signal: 2...10 V.
• Operating time: 35 s / 15 mm.
• Power consumption during operation: 2 W; at rest: 0.5 W; for wire sizing: 3.5 VA.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm² (4 mm² terminal).
• IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Operation and function

Manual adjustment is performed using a button that can be locked. Setting range adaptation is manual and is activated automatically when the power is first switched on. The actuator has mechanical position indication for a 5...15 mm stroke and overload protection; it stops automatically when the end stop is reached.
