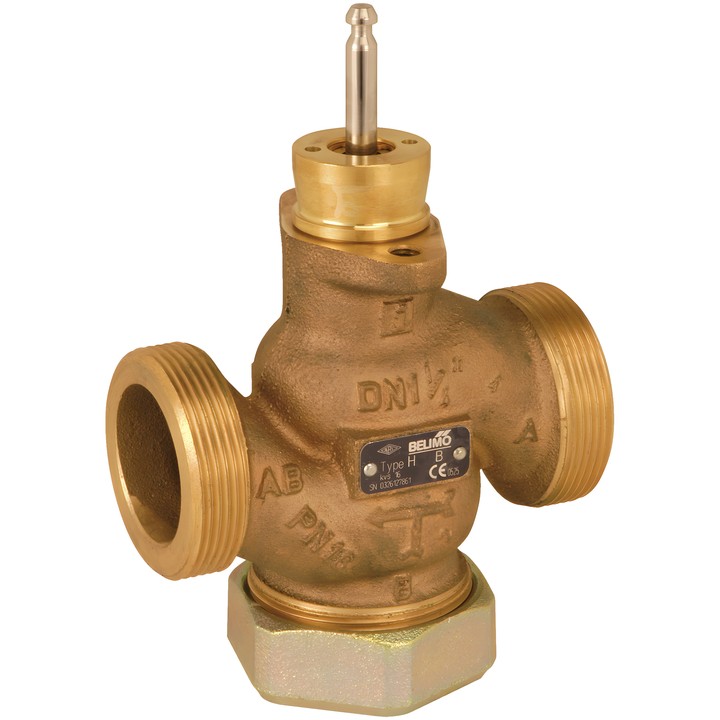

Belimo H440B - 2-way globe valve DN 40

Name: Belimo H440B - 2-way globe valve DN 40
Brand: Belimo
SKU: H440B
Price: 1233.71 PLN
Availability: BackOrder

Belimo

zł1,233.71

VAT included

zł1,003.02 tax excluded

Belimo H440B is a 2-way globe valve with G 2 1/4" male thread, DN 40, PN 16 and Kvs 25 m³/h. It is designed to regulate flow in open and closed water systems.

Medium: water or water with up to 50% vol. glycol; medium temperature -10...120°C [14...248°F].

Delivery in approx. 14 days

Belimo H440B – 2-way globe valve

Valve for regulating the water side in ventilation and heating systems. It can be used in open and closed water systems.

Key features

DN 40, PN 16, ps 1600 kPa.
Connection: G 2 1/4" male thread.
Kvs: 25 m³/h; stroke: 15 mm.
Medium: water, water with up to 50% vol. glycol.
Medium temperature: -10...120°C [14...248°F].
Flow characteristic: equal percentage; permissible leakage: max. 0,05% of the Kvs value.
Valve body: CC499K; closing element and stem: stainless steel; stem seal: EPDM O-ring.

Installation instructions

Permitted installation position: from vertical to horizontal in relation to the stem. Do not install with the stem pointing downwards. Observe the flow direction indicated by the arrow on the body. For a medium temperature of -10...2°C, the technical data sheet specifies that the stem must be heated.

Brand

Belimo
Reference

H440B
EAN13

7630498105654

Kvs

25 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

When the medium temperature is -10...2°C, shaft heating is recommended.
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Max. 0.05% of Kvs value
Pipe connection

External thread
