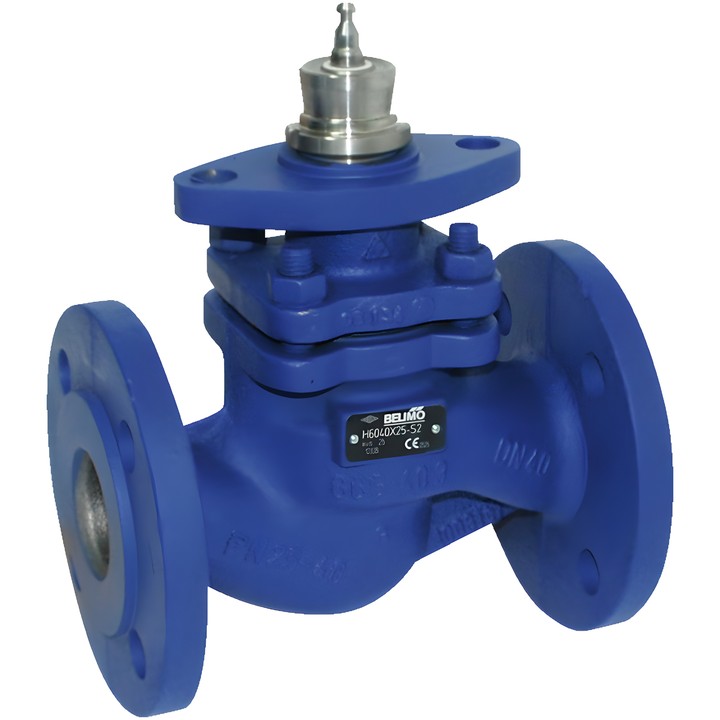

Belimo H6015XP4-S2 - 2-way globe valve

Name: Belimo H6015XP4-S2 - 2-way globe valve
Brand: Belimo
SKU: H6015XP4-S2
Price: 2265.41 PLN
Availability: BackOrder

Belimo

zł2,265.41

VAT included

zł1,841.80 tax excluded

Belimo H6015XP4-S2 is a DN 15 2-way globe valve with a PN 25 flange connection and Kvs 0.4 m³/h. It is designed for flow control in closed water and steam systems within the applications specified by the manufacturer.

Medium temperature: 5...150°C [41...302°F]. The flow characteristic is equal-percentage, and the permissible leakage is max. 0,05% of the Kvs value.

Delivery in approx. 14 days

Belimo H6015XP4-S2 – 2-way globe valve

Flanged valve for closed water and steam systems in non-critical applications and for continuous control on the water side of ventilation and heating systems. It operates with a globe valve actuator.

Key features

Nominal diameter: DN 15; nominal pressure: PN 25.
Pipe connection: flange compliant with ISO 7005-2.
Kvs: 0.4 m³/h; stroke: 15 mm.
Medium: water and steam (Δp/P1 <0,4), water with max. 50% by volume glycol.
Medium temperature: 5...150°C [41...302°F]; 120°C up to 2500 kPa, 150°C up to 2430 kPa.
Flow characteristic: equal-percentage (VDI/VDE 2173), optimised in the opening range.
Permissible leakage: max. 0,05% of the Kvs value.
Body: EN-GJS-400-18-LT (GGG 40.3), with protective coating; closing element, stem and seat: stainless steel; stem seal: PTFE V-ring.
Installation position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.

During installation, observe the flow direction indicated by the arrow on the body. Maximum differential pressure and closing pressure depend on the actuator used.
