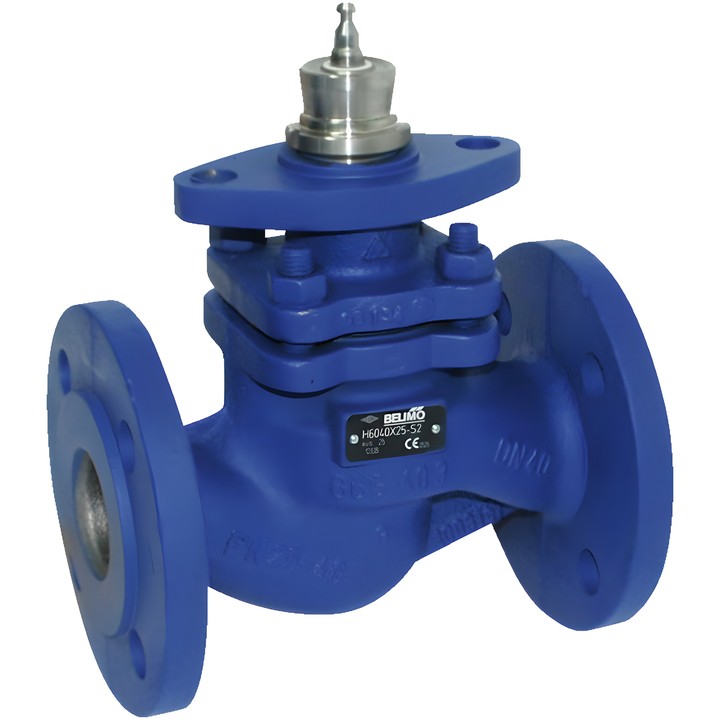

Belimo H6080X90-SP2 - 2-way globe valve

Name: Belimo H6080X90-SP2 - 2-way globe valve
Brand: Belimo
SKU: H6080X90-SP2
Price: 14568.98 PLN
Availability: BackOrder

Belimo

zł14,568.98

VAT included

zł11,844.70 tax excluded

Belimo H6080X90-SP2 2-way globe valve with partially pressure-balanced plug and flanged connection. DN 80, PN 25, Kvs 90 m³/h, ps 2500 kPa.

Designed for modulating control on the water side of ventilation and heating systems. Medium temperature: 5...150°C [41...302°F].

Delivery in approx. 14 days

Belimo H6080X90-SP2 – DN 80 globe valve

2-way globe valve with a partially pressure-balanced plug, designed for closed water and steam systems in non-critical applications and for modulating control on the water side of ventilation and heating systems.

Key features

DN 80, PN 25, ps 2500 kPa; flanged connection.
Kvs 90 m³/h; stroke 18 mm.
Medium: water and steam (Δp/P1 <0,4), water with a maximum of 50% vol. glycol.
Medium temperature: 5...150°C [41...302°F]; 120°C at up to 2500 kPa, 150°C at up to 2430 kPa.
Equal-percentage characteristic; permissible leakage: max. 0,05% of the Kvs value.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element, stem and seat in stainless steel; stem seal: PTFE V-ring.
Permitted installation position: from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted.

The maximum differential pressure and closing pressure depend on the globe valve actuator installed.
