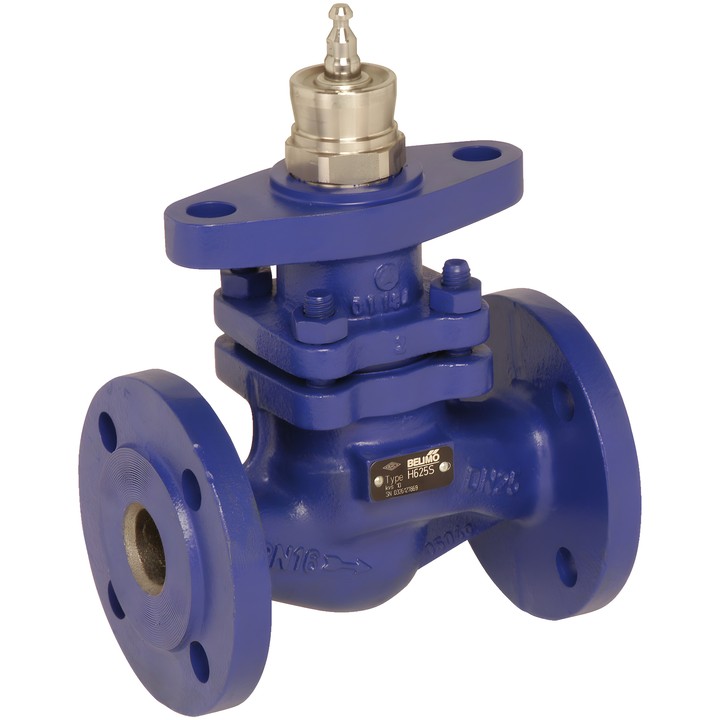

Belimo H6150SP - 2-way globe valve DN 150

Name: Belimo H6150SP - 2-way globe valve DN 150
Brand: Belimo
SKU: H6150SP
Price: 31422.97 PLN
Availability: BackOrder

Belimo

zł31,422.97

VAT included

zł25,547.13 tax excluded

Belimo H6150SP is a 2-way globe valve with partially pressure-balanced plug, PN 16 flanged connection and a Kvs value of 320 m³/h. It is designed for water-side control in ventilation and heating systems.

Medium temperature is 5...150°C [41...302°F]. The body is made of EN-GJL-250 (GG 25).

Delivery in approx. 14 days

Belimo H6150SP – globe valve

2-way globe valve with partially pressure-balanced plug, designed for closed water and steam systems in non-critical applications and for continuous water-side control in ventilation and heating systems.

Key features

DN 150; PN 16 flanged connection.
Kvs: 320 m³/h; stroke: 40 mm.
Medium: water and steam (Δp/P1 <0,4), water with a maximum of 50% by volume glycol.
Medium temperature: 5...150°C [41...302°F]; 120°C up to 1600 kPa, 150°C up to 1400 kPa.
Flow characteristic: equal percentage, optimised in the opening range.
Permissible leakage: max. 0,05% of the Kvs value.
Body: EN-GJL-250 (GG 25); closing element, stem and seat: stainless steel; stem seal: PTFE V-ring.
Permissible mounting position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.

Maximum differential pressure and closing pressure depend on the actuator installed.
