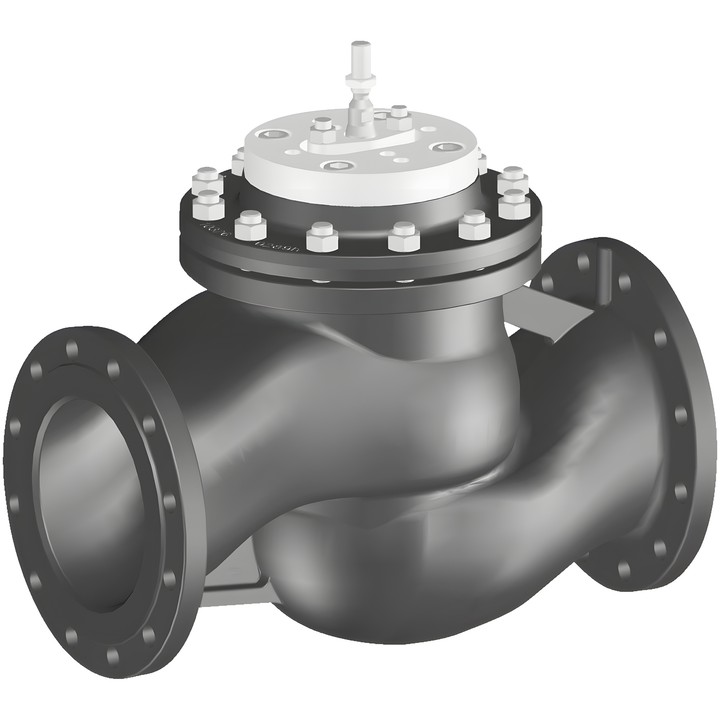

Belimo H6200W630-S7 - 2-way globe valve DN 200

Name: Belimo H6200W630-S7 - 2-way globe valve DN 200
Brand: Belimo
SKU: H6200W630-S7
Price: 36116.33 PLN
Availability: BackOrder

Belimo

zł36,116.33

VAT included

zł29,362.87 tax excluded

2-way globe valve Belimo H6200W630-S7 with flanged connection, DN 200, PN 16 and Kvs 630 m³/h. Designed for closed water systems and water-side control in ventilation and heating systems.

Medium: water or water with max. 50% vol. glycol. Medium temperature: 5...120°C [41...248°F].

Delivery in approx. 14 days

Belimo H6200W630-S7 – 2-way globe valve

Valve with flanged connection for closed water systems, designed for water-side control in ventilation and heating systems.

Key features

DN 200, PN 16, Kvs 630 m³/h.
Stroke: 65 mm; flow characteristic: equal percentage, optimised in the opening range.
Permissible leakage: max. 0.05% of the Kvs value.
Medium: water or water with max. 50% vol. glycol; medium temperature: 5...120°C [41...248°F].
Body: EN-GJL-250 (GG 25), with protective coating. Closing element, stem and seat: stainless steel; stem seal: EPDM.
Flanged connection according to ISO 7005-2.

Permissible mounting position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body. Maximum differential pressure and closing pressure depend on the actuator installed.
