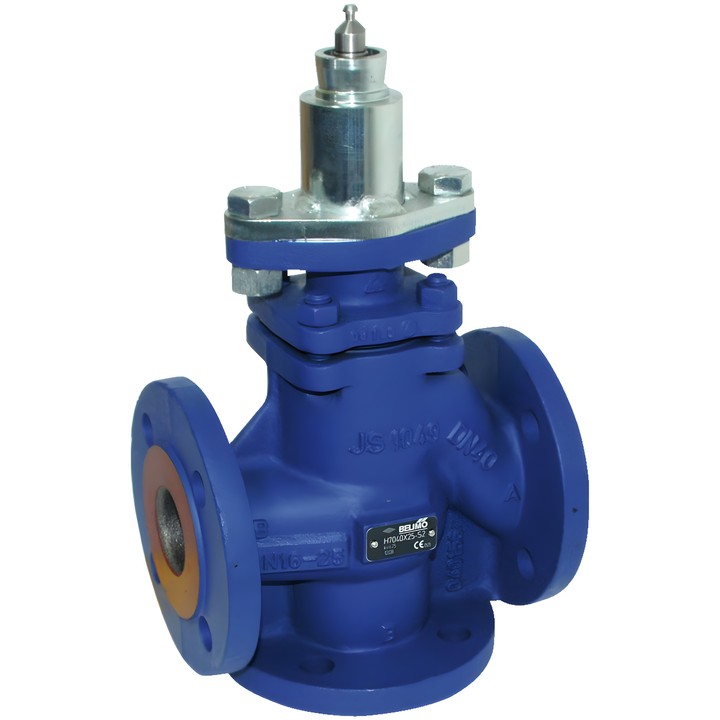

Belimo H7040X25-S2 - 3-way globe valve DN 40
Price:
zł4,763.24
VAT included
zł3,872.55 tax excluded
Belimo H7040X25-S2 3-way globe valve with flanged connection, PN 25 and Kvs 25 m³/h. Designed for closed water systems and water-side control in ventilation and heating systems.
Belimo H7040X25-S2 is a 3-way globe valve for control in closed water systems. The flanged connection complies with ISO 7005-2.
Key features
- DN 40, PN 25, Kvs 25 m³/h; stroke 20 mm.
- Medium: water or water with up to 50% vol. glycol.
- Medium temperature: 5...200°C [41...392°F]. Pressure note: 120°C up to 2500 kPa; 200°C up to 2300 kPa.
- Flow characteristic: A – AB: equal percentage; B – AB: equal percentage.
- Permissible leakage: A – AB: max. 0.05% of Kvs value; B – AB: max. 1% of Kvs value.
- Body: EN-GJS-400-18-LT (GGG 40.3); closing element, stem and seat: stainless steel; stem seal: PTFE V-ring.
Installation notes
Permitted installation from vertical to horizontal relative to the stem. Do not install with the stem pointing downwards. Observe the flow direction indicated by the arrow on the body.
-
Brand
-
ReferenceH7040X25-S2
-
EAN137630498106491
-
Kvs25 m³/h
-
MediumWater, water with up to 50% vol. glycol.
-
Pattern3-way
-
Fluid temperature5...200°C [41...392°F]
-
Fluid temperature, note120°C at 2500 kPa 200°C at 2300 kPa
-
Flow characteristicA – AB: linear; B – AB: linear
-
Permissible leakageA – AB: max. 0.05% of Kvs value; B – AB: max. 1% of Kvs value
-
Pipe connectionFlange
