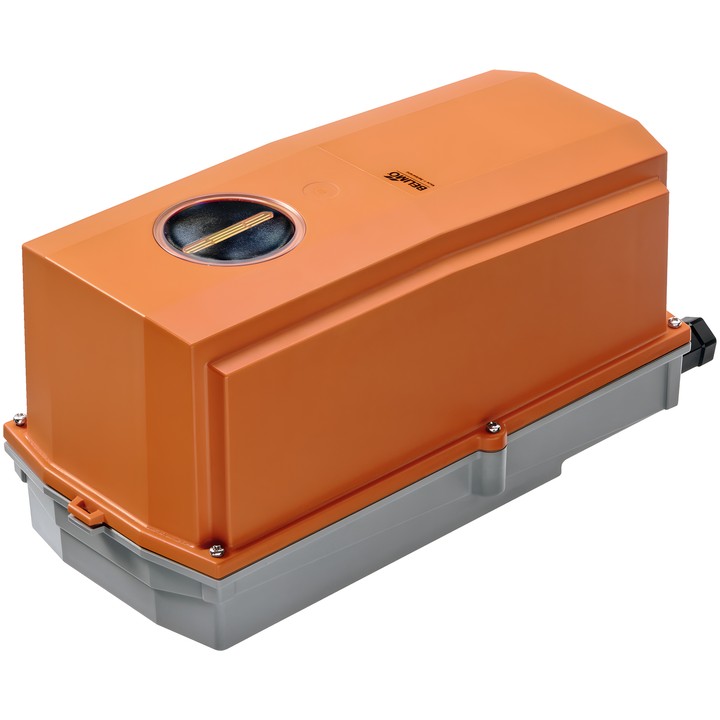

Belimo GRC24G-MF-T-5 - rotary actuator for valves

Name: Belimo GRC24G-MF-T-5 - rotary actuator for valves
Brand: Belimo
SKU: GRC24G-MF-T-5
Price: 2749.10 PLN
Availability: BackOrder

Belimo

zł2,749.10

VAT included

zł2,235.04 tax excluded

Configurable rotary actuator for rotary valves and dampers. Torque 40 Nm, AC/DC 24 V supply, modulating control 2...10 V and position feedback signal 2...10 V.

Rotation time is 35 s / 90°. The actuator has an F05 flange connection, electrical terminals and IP66/67 protection rating.

Delivery in approx. 14 days

Belimo GRC24G-MF-T-5

Configurable rotary actuator designed for rotary valves and dampers. The position is set by the analogue control signal Y, while voltage U is used to indicate the valve position.

Key features and specifications

Torque: 40 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Modulating control: 2...10 V; position feedback signal: 2...10 V.
Rotation time: 35 s / 90°; adjustable operating time: 35...150 s.
Power consumption during operation: 8 W; at rest: 2.5 W; for cable sizing: 11 VA.
Power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
Flange connection: F05; IEC/EN protection rating: IP66/67; NEMA 4X.
IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Manual adjustment by push-button with locking option; position indicator.
Adjustable rotation angle with mechanical stops; standard setting: 0...90°.
Parameter configuration using Belimo Assistant 2 or ZTH EU.

The actuator is designed for fixed heating, ventilation and air-conditioning installations. According to the technical data sheet, it is particularly suitable for outdoor applications.
