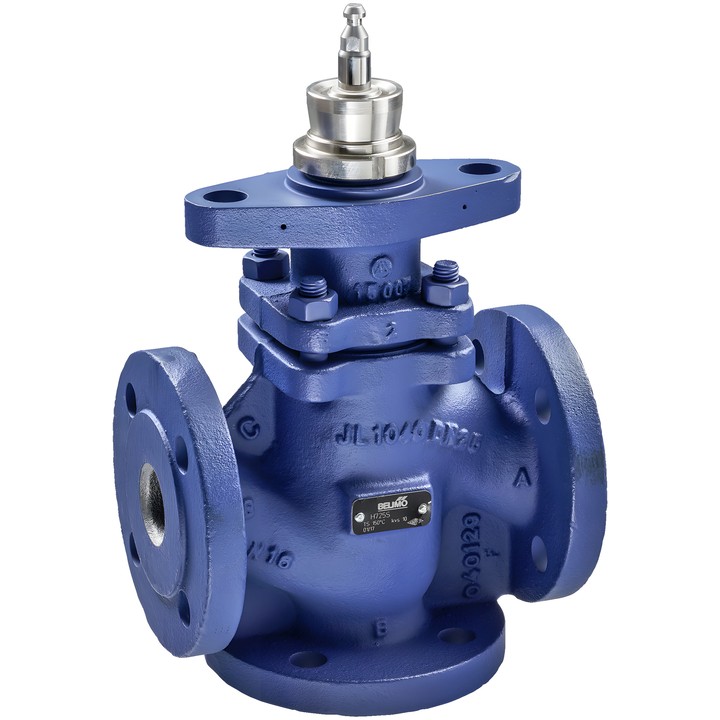

Belimo H7100S - 3-way flanged globe valve DN 100

Belimo H7100S – 3-way globe valve

Flanged valve for water-side control in ventilation and heating systems. It can operate as a mixing valve A+B to AB or as a diverting valve AB to A+B.

Key features and specifications

• DN 100, PN 16; Kvs 160 m³/h.
• Pipe connection: flange.
• Fluid: water, water with up to 50% vol. glycol.
• Fluid temperature: 5...150°C [41...302°F]; 120°C at 1600 kPa, 150°C at 1400 kPa.
• Flow characteristic: A – AB equal-percentage, B – AB linear.
• Permissible leakage: A – AB max. 0.05% of Kvs value; B – AB max. 1% of Kvs value.
• Stroke: 30 mm; valve body: EN-GJL-250 (GG 25).
• Permissible mounting position: from vertical to horizontal relative to the stem; mounting with the stem pointing downwards is not permitted.

Maximum differential pressure and closing pressure depend on the actuator installed. In diverting mode, permissible pressure values are lower than in mixing mode.
