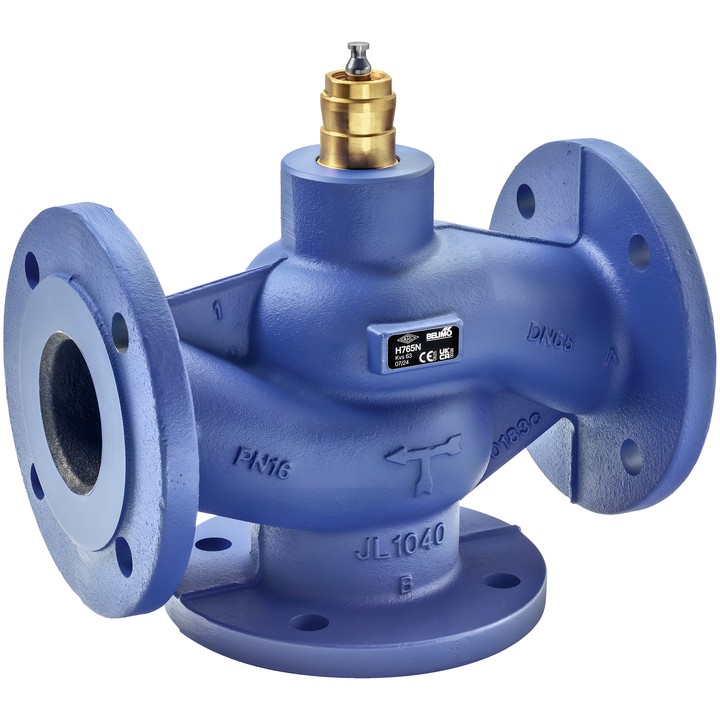

Belimo H7125N - 3-way globe valve

Name: Belimo H7125N - 3-way globe valve
Brand: Belimo
SKU: H7125N
Price: 9339.00 PLN
Availability: BackOrder

Belimo

zł9,339.00

VAT included

zł7,592.68 tax excluded

Belimo H7125N is a 3-way globe valve with flanged connection, DN 125, PN 16 and Kvs 220 m³/h. It is designed for closed water systems and water-side control in ventilation and heating systems.

Delivery in approx. 14 days

Belimo H7125N – technical data

3-way globe valve for flow control in closed water systems. Flanged connection according to ISO 7005-2.

DN 125, PN 16, Kvs 220 m³/h; stroke 40 mm.
Fluid: water or water with a maximum of 50% vol. glycol.
Fluid temperature: -10...120°C [14...248°F]. Stem heating is required at temperatures of -10...2°C.
Flow characteristic: A – AB equal-percentage, B – AB linear.
Permissible leakage: A – AB max. 0.05% of Kvs value; B – AB max. 1% of Kvs value.
Body: EN-GJL-250 (GG 25); closing element and stem: stainless steel; stem seal: EPDM O-ring.

Install with the stem from vertical to horizontal; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body. Maximum differential pressure and closing pressure depend on the actuator installed.

Brand

Belimo
Reference

H7125N
EAN13

7630498106590

Kvs

220 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

3-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

When the medium temperature is -10...2°C, shaft heating is recommended.
Flow characteristic

A – AB: equal-percentage; B – AB: linear
Permissible leakage

A – AB: max. 0.05% of Kvs value; B – AB: max. 1% of Kvs value
Pipe connection

Flange
