Belimo HTL230-3-T - rotary actuator for mixing valves

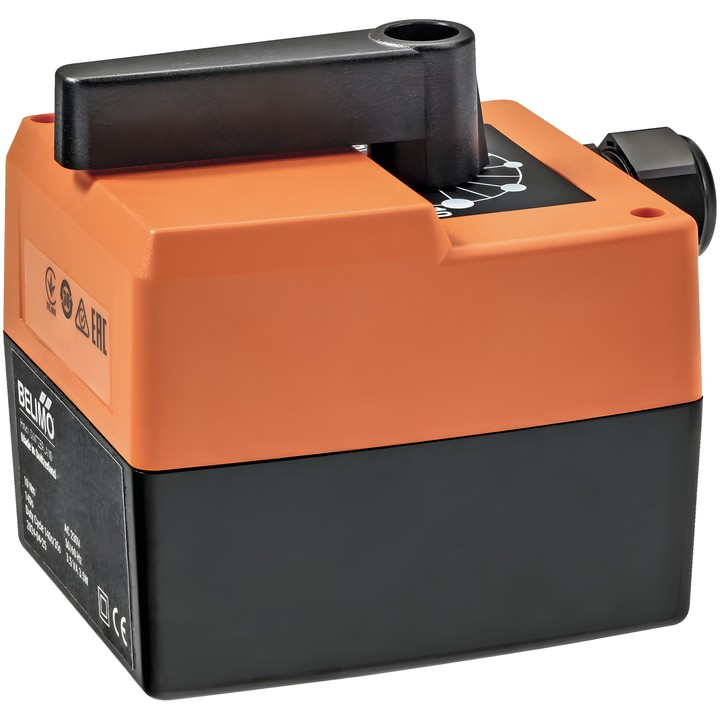

Belimo HTL230-3-T rotary actuator

The HTL230-3-T is designed to drive mixing valves in stationary HVAC systems in combination with a suitable mounting kit. The actuator is controlled by a 3-point signal.

Key features and technical data

• Torque: 10 Nm.
• Nominal voltage: AC 230 V; frequency: 50/60 Hz; nominal voltage range: AC 198...264 V.
• Power consumption during operation: 2.5 W; sizing power: 2.5 VA.
• Control: 3-point; parallel operation: no.
• Motor running time: 280 s / 90°; rotation angle: 90°; direction of movement: clockwise (cw).
• Power and control connection: 4 mm² terminals (cable ø6...8 mm, 3-core).
• Manual override: temporary or permanent disengagement of the gear train using the knob on the housing.
• IEC/EN protection class: II, reinforced insulation; IEC/EN protection rating: IP40.
• Ambient temperature: 0...50°C; ambient humidity: max. 95% RH, non-condensing.

The actuator switches off automatically when the end stops are reached. According to the documentation, it must be protected against moisture and is not intended for outdoor use.
