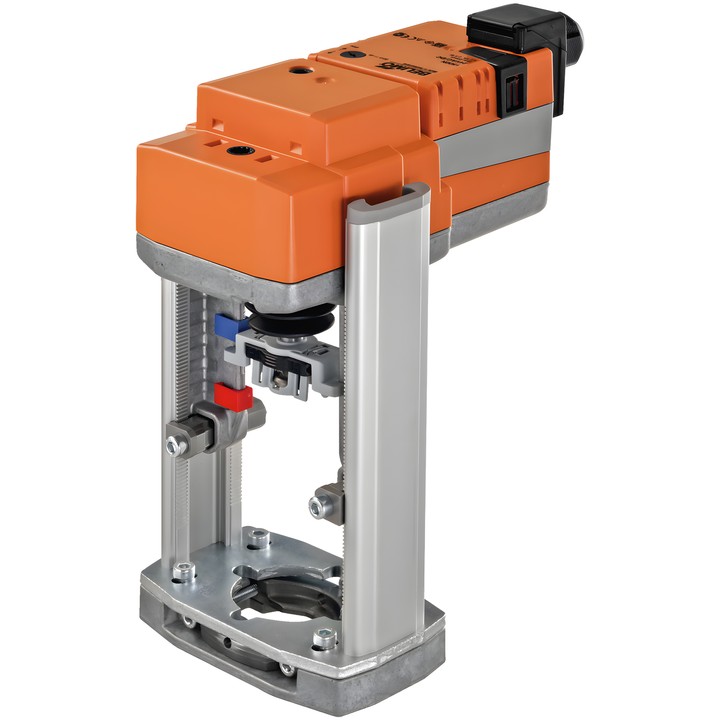

Belimo LV24A-RE - linear actuator for globe valves

Belimo LV24A-RE - linear actuator for globe valves

Belimo
zł1,450.54
VAT included
zł1,179.30 tax excluded

RetroFIT+ linear actuator for 2- and 3-way globe valves. Force 500 N, AC/DC 24 V supply, 3-point Close/Open control, 20 mm stroke and 200 s / 20 mm running time.

Equipped with push-button manual override with locking option and connecting terminals. Protection rating IP54.

Delivery in approx. 14 days
Share

Belimo LV24A-RE actuator

RetroFIT+ actuator designed for 2- and 3-way globe valves. The RetroFIT+ design enables installation on a wide range of valves from different manufacturers using a bracket and universal valve neck and stem adapters.

Key features and technical data

  • Motor force: 500 N; stroke: 20 mm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: 3-point Close/Open.
  • Motor running time: 200 s / 20 mm.
  • Power consumption during operation: 1.5 W; in standby: 0.5 W; for wire sizing: 3 VA.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm).
  • Push-button manual override with locking option; mechanical position indication.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Overload protection and automatic stop when the end stop is reached.

  • Brand
    Belimo
  • Reference
    LV24A-RE
  • EAN13
    7630498112737

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    3 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    500 N
  • Manual override
    Push-button, with locking option
  • Stroke
    20 mm
  • Running time (motor)
    200 s / 20 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (2.63MB)

EU Declaration of Conformity – LV24A-RE

Download (310.81KB)

Environmental Declaration – LV..-RE

Download (72.06KB)
