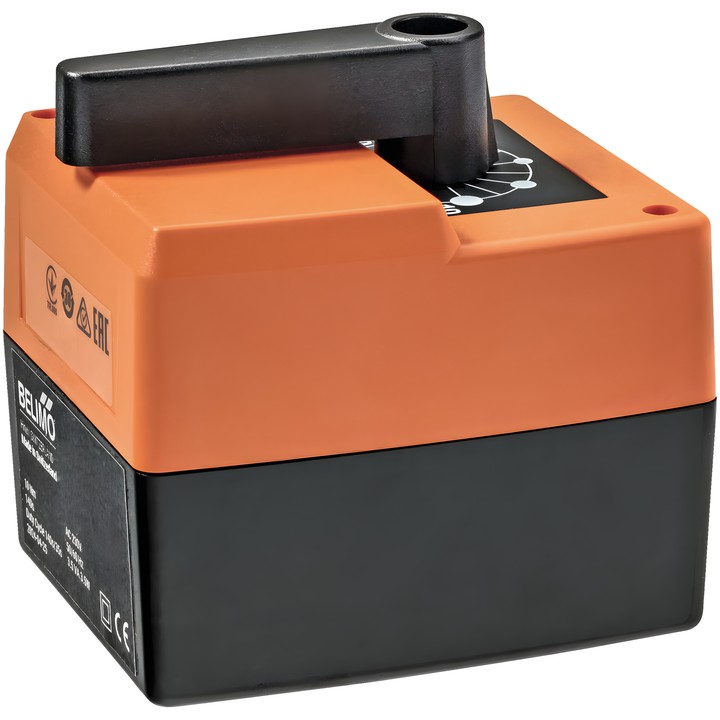

Belimo HTYD24-SR - rotary actuator for mixing valves

Belimo HTYD24-SR – rotary actuator

Actuator for operating mixing valves in stationary HVAC systems, used in combination with the appropriate mounting kit.

Key features

• Torque: 5 Nm; rotation angle: 90°.
• Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Modulating control; Y signal range selectable between 0...10 V or 2...10 V.
• Position feedback signal U: 0...10 V; positioning accuracy: ±5%.
• Motor running time: 35 s / 90°; motor direction of rotation: clockwise (cw).
• Power consumption during operation: 1.5 W; power rating for cable sizing: 3 VA.
• Power and control connection: 1 m cable, 4x 0.75 mm².
• Manual adjustment: temporary or permanent disengagement of the gearbox using the knob on the housing.
• IEC/EN degree of protection: IP40; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature during operation: 0...50°C.

The device is intended for indoor use and requires protection against moisture. Installation may only be carried out by authorised specialists.
