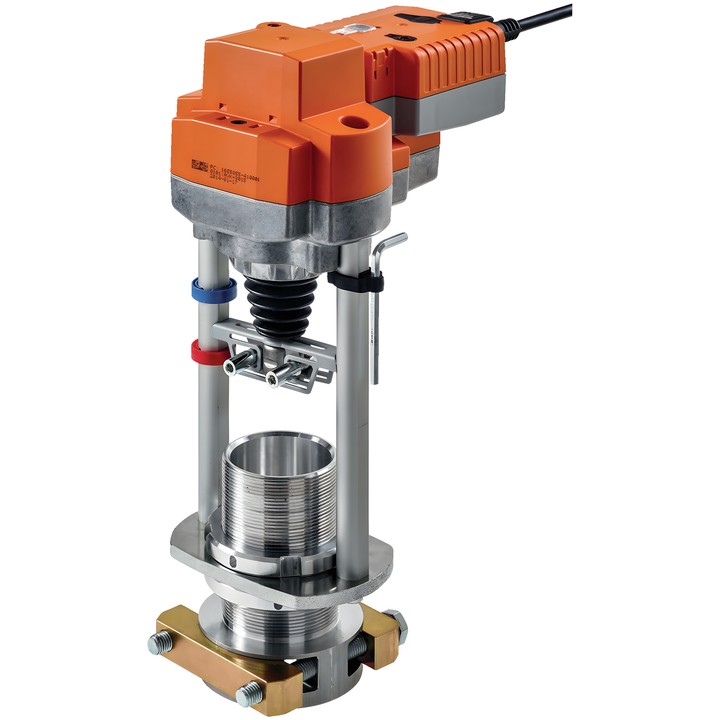

Belimo AVK230A-3-RE - actuator for globe valves

Name: Belimo AVK230A-3-RE - actuator for globe valves
Brand: Belimo
SKU: AVK230A-3-RE
Price: 5163.91 PLN
Availability: BackOrder

Belimo

zł5,163.91

VAT included

zł4,198.30 tax excluded

RetroFIT+ linear actuator for 2- and 3-way globe valves, with a safety function provided by integrated capacitors. Force 2000 N, power supply AC 100...240 V, 3-point control and 32 mm stroke.

Motor running time is 150 s / 32 mm, and safety function running time is 35 s / 32 mm. If the power supply fails, the actuator moves the valve to the configured safety position.

Delivery in approx. 14 days

Belimo AVK230A-3-RE

RetroFIT+ linear actuator with a safety function for 2- and 3-way globe valves. During normal operation, the integrated capacitors are charged; if the power supply fails, the stored energy moves the valve to the selected safety position.

Key features and specifications

Actuator force: 2000 N; stroke: 32 mm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: 3-point.
Motor running time: 150 s / 32 mm; safety function running time: 35 s / 32 mm.
Configurable safety position: stem retracted or extended; power failure hold time (PF): 2 s.
Power consumption during operation: 3.5 W; at rest: 1.5 W; for wire sizing: 6.5 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Manual adjustment by push-button; mechanical position indicator for 5...32 mm stroke.
Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.

RetroFIT+ actuators for installation on valves from various manufacturers include a universal valve neck adapter and a universal stem adapter. For installation on Belimo globe valves, the manufacturer recommends standard Belimo actuators.
