Belimo KR24 is a rotary actuator for ball valves with a torque of 2 Nm. It is powered by AC/DC 24 V and supports On/Off and 3-point control.

Running time is 75 s / 90°. The actuator has an IP54 protection rating and a 1 m connection cable, 3x 0.75 mm².

Delivery in approx. 14 days

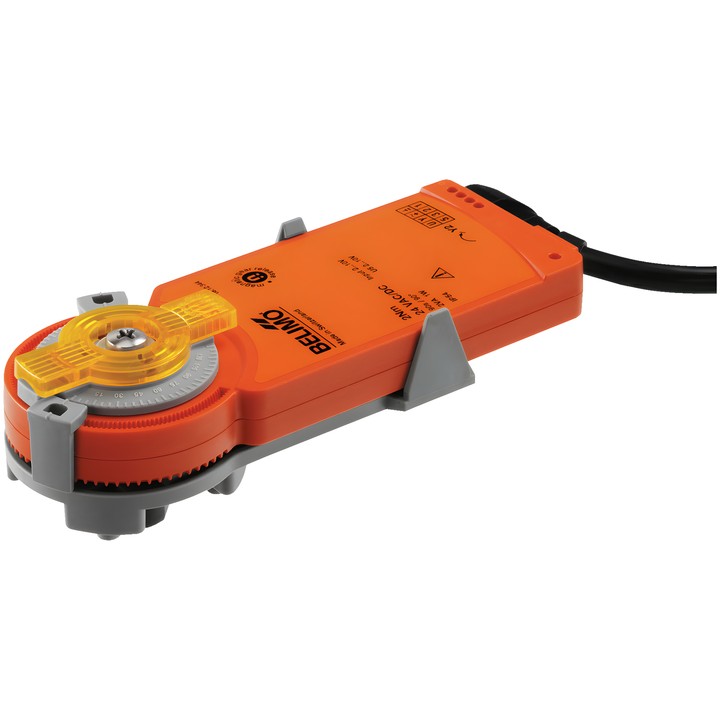

Belimo KR24 rotary actuator

Electronic actuator for ball valves, designed for use in stationary heating, ventilation and air conditioning installations. It allows manual adjustment using a magnet and rotation angle limitation.

Main features and specifications

Torque: 2 Nm.
Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
Nominal voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Control: On/Off, 3-point.
Running time: 75 s / 90°.
Power consumption during operation: 0.5 W; at rest: 0.2 W; for wire sizing: 1 VA.
Power and control connection: Cable 1 m, 3x 0.75 mm².
Manual adjustment using a magnet; Z-MA magnet included.
Mechanical, plug-in position indicator.
Rotation angle limitation from 90° (A – AB = 100%) in 2.5° increments; scale corresponds to 25...100% of the Kvs value.
IEC/EN protection class: III, Safety Extra-Low Voltage (SELV); IEC/EN protection rating: IP54.
Ambient temperature: -30...50°C.

Direct mounting on the ball valve is carried out using one screw. The mounting position relative to the valve can be selected in 90° increments.
