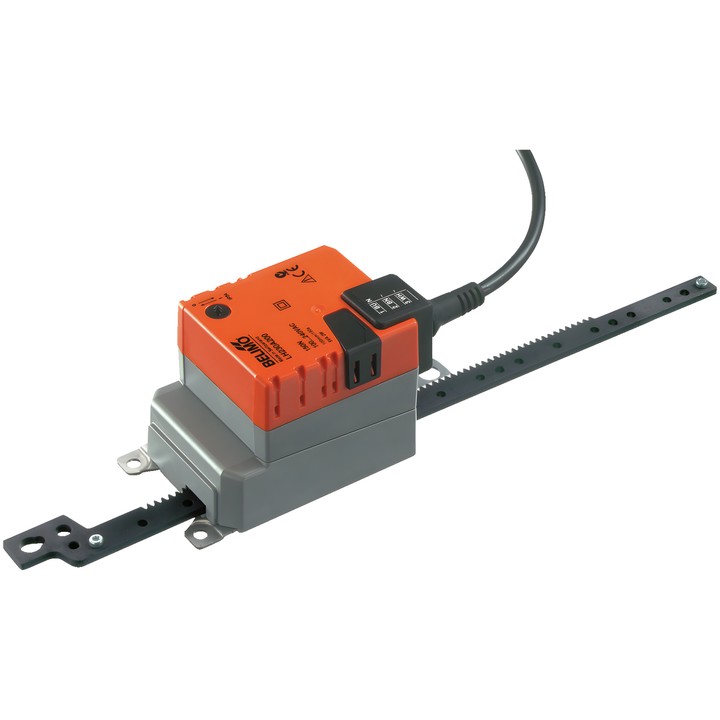

Belimo LH230A200 - linear actuator

Belimo LH230A200 – linear actuator

Actuator designed to control dampers and slide valves in building services installations. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 1 m².

Key features and technical data

• Actuator force: 150 N.
• Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Close/Open, 3-point.
• Stroke: max. 200 mm, adjustable in 20 mm increments; stroke limited on both sides by mechanical stops.
• Motor running time: 150 s / 100 mm.
• Power consumption during operation: 2 W; in the rest position: 1 W; for cable sizing: 5 VA.
• Direction of movement selected by switch 0 (extended) / 1 (retracted).
• Manual adjustment by push button with locking facility.
• Power and control connection: 1 m cable, 3x 0.75 mm².
• IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
• Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when a stop is reached. Installation must be carried out in accordance with the manufacturer's instructions, taking possible lateral forces into account.
