Belimo GM24G-SR-T - actuator for dampers with analogue control

Belimo GM24G-SR-T - actuator for dampers with analogue control

Belimo
zł2,394.54
VAT included
zł1,946.78 tax excluded

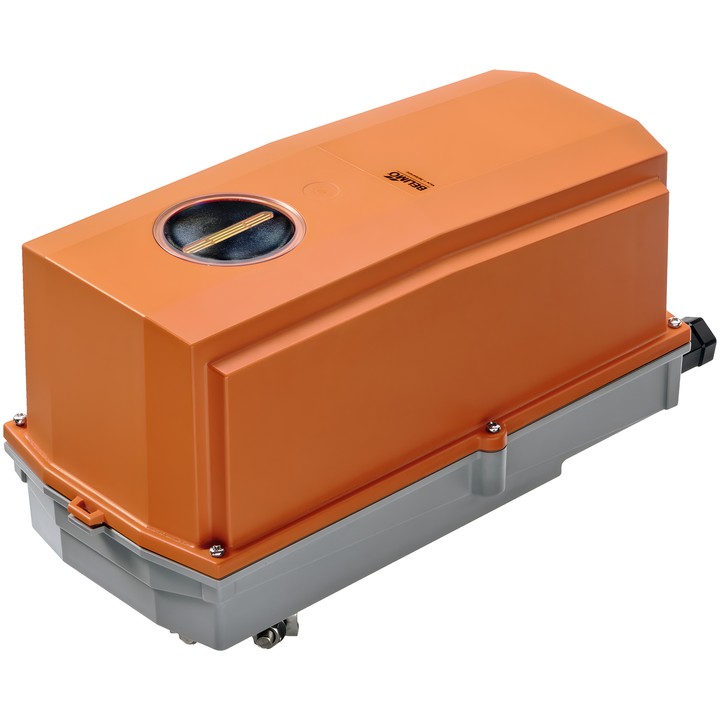

Belimo GM24G-SR-T damper actuator with a torque of 40 Nm, AC/DC 24 V supply and modulating control 2...10 V. The motor running time is 150 s / 90°, and the position feedback signal range is 2...10 V.

The enclosure with IEC/EN IP66/67 protection is intended for outdoor applications. The actuator is mounted on the damper shaft using a universal clamp 14...26.7 mm.

Delivery in approx. 14 days
Share

Belimo GM24G-SR-T damper actuator

Modulating actuator for positioning dampers in technical building systems. The manufacturer specifies an air damper size of up to approx. 8 m². The model is suitable for outdoor applications and protection against UV radiation, rain, snow, dirt, dust and moisture.

Key features and parameters

  • Motor torque: 40 Nm; supply: AC/DC 24 V, 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°, limited on both sides by mechanical stops.
  • Power consumption during operation: 4.5 W; in the rest position: 2 W; for cable sizing: 6.5 VA.
  • Mechanical connection: universal clamp 14...26.7 mm; power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
  • Motor direction selected by a 0/1 switch; mechanical position indicator.
  • Manual adjustment using a push-button with locking option, accessible beneath the protective cover.
  • Protection rating IEC/EN IP66/67; NEMA 4X; UL Enclosure Type 4X; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when it reaches a stop. Limit switches are not required. It is not intended for use in corrosive environments or where chemical substances in the form of gases or liquids are present.

  • Brand
    Belimo
  • Reference
    GM24G-SR-T
  • EAN13
    7630498111730

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    4.5 W
  • Power consumption (holding)
    2 W
  • Rated power
    6.5 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    DC 2...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Button, lockable (under protective cover)
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    40 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 14...26.7 mm

Techniczna karta katalogowa

Download (1.78MB)

Instrukcja montażu

Download (1.12MB)

EU Declaration of Conformity – GM24G-SR-T

Download (32.54KB)

Environmental Declaration – GM..G..

Download (72.48KB)
