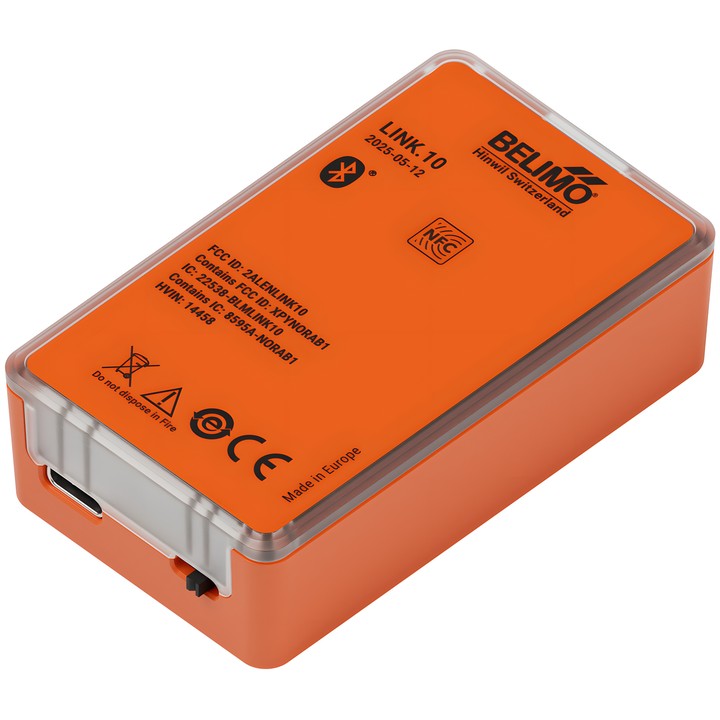

Belimo LINK.10 - Bluetooth/USB converter for NFC/MP-Bus

Belimo Assistant Link LINK.10

The converter connects Belimo Assistant 2 to configurable Belimo devices equipped with a communication interface. A wireless connection to a device marked with the NFC logo is established via a smartphone with Bluetooth and LINK.10. The wired connection uses the computer's USB port and the device's service socket or MP-Bus cable.

Key features and specifications

• Interfaces: NFC, Bluetooth 5.0 Low Energy (BLE), USB 2.0 and MP-Bus.
• Bluetooth range: max. 10 m, depending on the surroundings; NFC range: max. 2 cm.
• Nominal voltage: AC/DC 24 V; voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
• Power consumption during operation: 2 W.
• Battery: 450 mAh, non-replaceable; typical charging time from 20% to 70%: 1 h.
• IEC/EN protection rating: IP20; ambient temperature: 0...50°C [32...122°F], non-condensing.
• USB-C and MP-Bus (RJ11) sockets, LED indicator and standby mode.
• Dimensions W × L × H: 45 × 75 × 21 mm; weight: 0.068 kg.

During a wired connection, Belimo Assistant 2 operates as an MP client; no other MP client should be connected to the device at that time.
