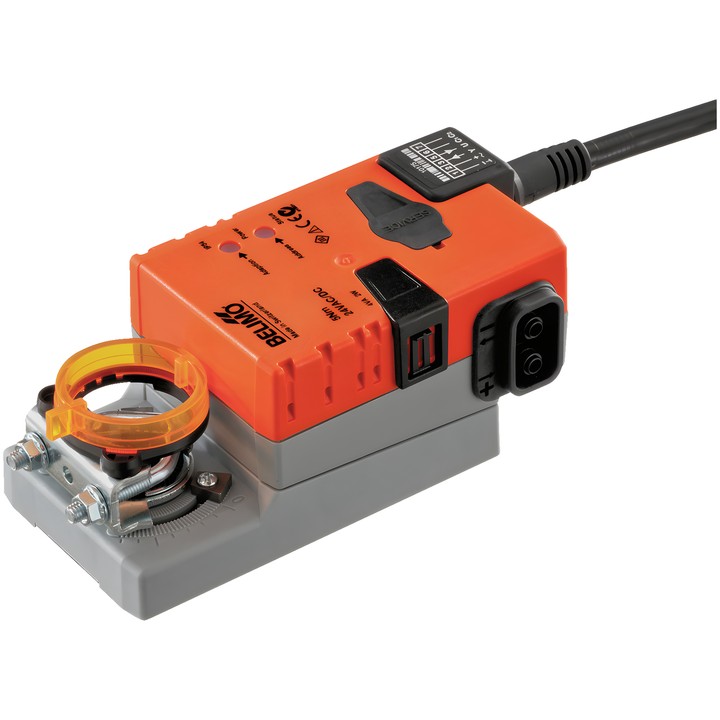

Belimo LMV-M1-MOD - VAV-Compact airflow controller with actuator

Belimo LMV-M1-MOD – VAV-Compact unit

The unit combines a VAV controller, a Belimo M1 static membrane differential pressure sensor and an actuator for dampers. It is designed for VAV terminal units in comfort zones or ventilation systems with polluted air. It supports VAV/CAV airflow control and position control.

Key features and parameters

• Torque: 5 Nm; rotation angle: 95°.
• Differential pressure measuring range: 0...600 Pa; maximum system pressure: 1500 Pa.
• Communication: BACnet MS/TP, Modbus RTU (factory setting) or MP-Bus; communication, hybrid and modulating control (0/2...10 V).
• Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
• V'max control: 20...100% of V'nom; V'min control: 0...100% of V'nom (<V'max).
• Power supply: AC/DC 24 V, 50/60 Hz; power consumption during operation: 2 W, at rest: 1 W.
• Mechanical connection: universal clamp 6...20 mm; power and control connection: 1 m cable, 6x 0.75 mm².
• Manual adjustment using a pushbutton, with locking option; mechanical position indicator.
• IEC/EN protection rating: IP54; ambient temperature: 0...50°C [32...122°F].
