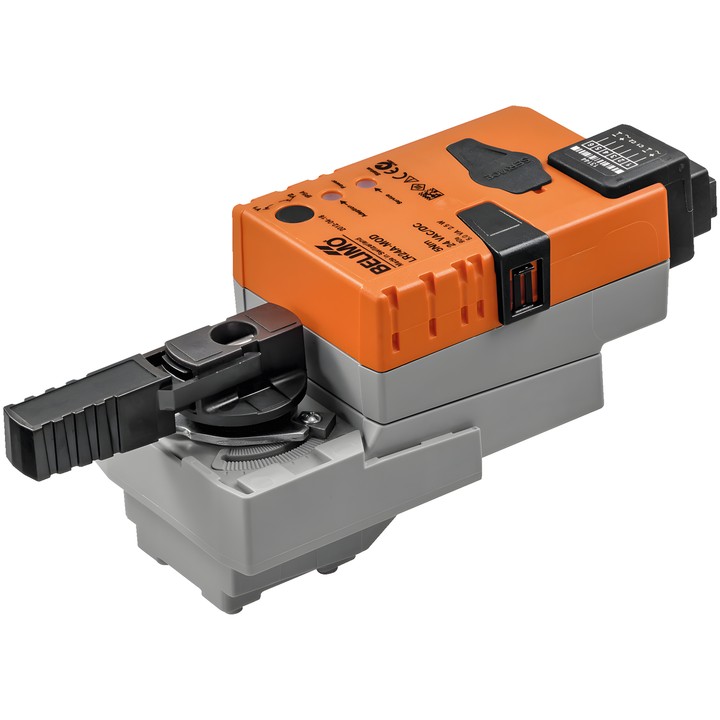

Belimo LR24A-MOD-J6 - rotary actuator for ball valves

Name: Belimo LR24A-MOD-J6 - rotary actuator for ball valves
Brand: Belimo
SKU: LR24A-MOD-J6
Price: 1728.15 PLN
Availability: OutOfStock

Belimo

zł1,728.15

VAT included

zł1,405.00 tax excluded

Belimo LR24A-MOD-J6 communication rotary actuator for ball valves. Torque 5 Nm, AC/DC 24 V supply and BACnet MS/TP or Modbus RTU communication.

Motor running time is 90 s / 90° and can be adjusted within 35...150 s. Power and control connection: RJ12 plug connector.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LR24A-MOD-J6

Communication rotary actuator for ball valves. The integrated BACnet MS/TP and Modbus RTU interface enables it to receive digital control signals and transmit current status.

Key features and technical data

Motor torque: 5 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Communication: BACnet MS/TP or Modbus RTU (factory setting).
Motor running time: 90 s / 90°; adjustable running time: 35...150 s.
Power consumption during operation: 2.5 W; in standby position: 1.3 W; for cable sizing: 5 VA.
Power and control connection: RJ12 plug connector.
Manual override by push-button, with locking option; adjustable angle of rotation with mechanical stops and mechanical position indicator.
Setpoint range adaptation: manual, automatic on first power-up.
IEC/EN protection rating: IP40; IP54 when using a protective cover or protective grommet for the RJ12 socket.
IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C; ambient humidity: max. 95% RH, non-condensing.
