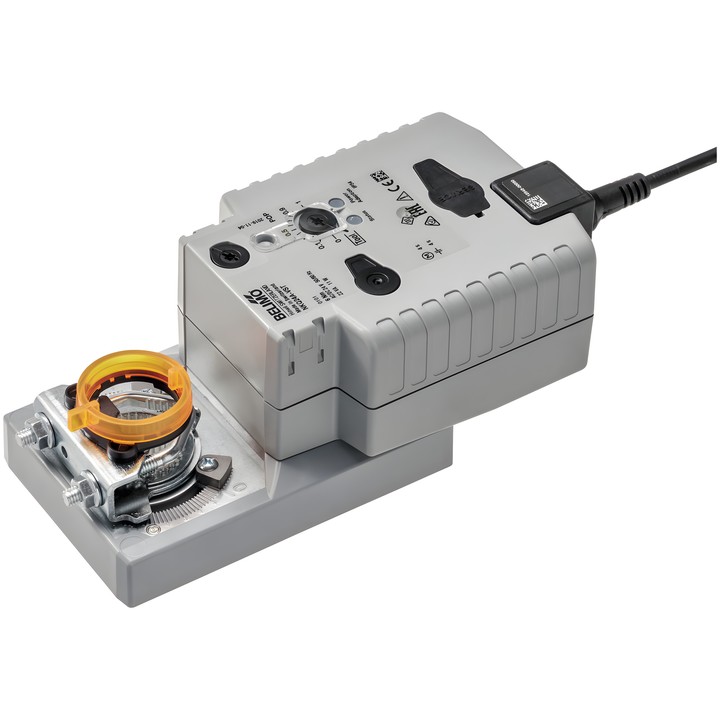

Belimo NKQ24A-VST - rotary actuator for dampers with safety function

Name: Belimo NKQ24A-VST - rotary actuator for dampers with safety function
Brand: Belimo
SKU: NKQ24A-VST
Price: 3697.38 PLN
Availability: OutOfStock

Belimo

zł3,697.38

VAT included

zł3,006.00 tax excluded

Belimo NKQ24A-VST rotary actuator for VAV and CAV units, with a safety function. Torque 6 Nm, AC/DC 24 V supply and PP communication control.

Motor and safety function running time is 4 s / 90°. Connection is via a 0.5 m cable with VST connector; protection rating is IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NKQ24A-VST

Rotary actuator with a safety function, designed for VAV and CAV units in technical building systems. Equipped with a universal shaft clamp and a cable with VST connector.

Key features and specifications

Motor torque: 6 Nm; air damper size: up to approx. 4 m².
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Control: PP communication.
Motor running time: 4 s / 90°; safety function running time: 4 s / 90°.
Safety function position: 0...100%, adjustable in 10% increments; safety function direction of movement selectable using a 0...100% switch.
Power consumption during operation: 11 W; in idle position: 3 W; for cable sizing: 22 VA.
Manual adjustment by push-button; mechanical, plug-in position indicator.
Mechanical connection: universal shaft clamp 8...26.7 mm.
Power and control connection: 0.5 m cable with VST connector.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

Before initial start-up, the capacitors require approximately 15 s of pre-charging. Adaptation is required during commissioning and after every change to the rotation angle.
