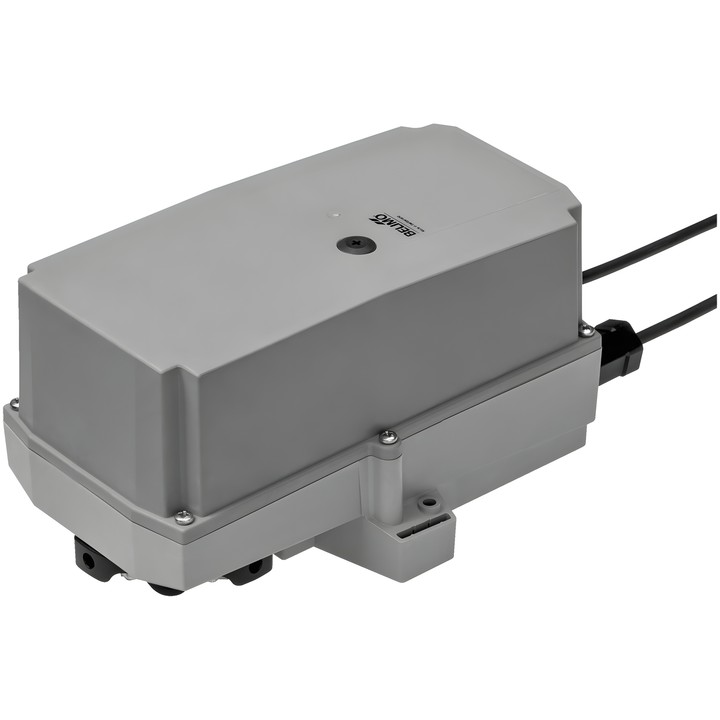

Belimo NM24P-S - rotary actuator for dampers

Belimo NM24P-S - rotary actuator for dampers

Belimo
zł1,438.92
VAT included
zł1,169.85 tax excluded

RobustLine rotary actuator for dampers, with a torque of 10 Nm and an AC/DC 24 V supply. Supports Close/Open and 3-point control; running time is 150 s / 90°.

Equipped with an adjustable 1x SPDT auxiliary switch, a universal clamp 10...20 mm and an enclosure rated IP66/67.

Delivery in approx. 14 days
Share

Belimo NM24P-S – actuator for dampers

The RobustLine rotary actuator is designed to control dampers in HVAC systems, comparable industrial installations and technical building services. According to the technical data sheet, it is particularly suitable for outdoor applications.

Key features

  • Torque: 10 Nm; damper size up to approx. 2 m².
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°.
  • Auxiliary switch: 1x SPDT, adjustable across 0...100%.
  • Power consumption: 1.5 W while running and 0.2 W at rest; 3.5 VA for wire sizing.
  • Direction of movement selected by switch 0 (counter-clockwise) / 1 (clockwise).
  • Manual override by push-button with locking option; mechanical rotation angle stops adjustable on both sides.
  • Mechanical connection: universal clamp 10...20 mm; mechanical position indicator.
  • Power/control and auxiliary switch connections: each with a 1 m cable, 3x 0.75 mm², FRNC (halogen-free).
  • IEC/EN protection rating: IP66/67; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NM24P-S
  • EAN13
    7630498113239

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Cable 1 m, 3x 0.75 mm², FRNC (halogen-free)
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    3.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm², FRNC (halogen-free)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    1x SPDT
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 10...20 mm

Techniczna karta katalogowa

Download (1.02MB)

Instrukcja montażu

Download (552.43KB)

Techniczna karta katalogowa – NM24P-S

Download (1.03MB)

EU Declaration of Conformity – NM24P-S

Download (32.74KB)

Environmental Declaration – NM..P..

Download (72.43KB)
