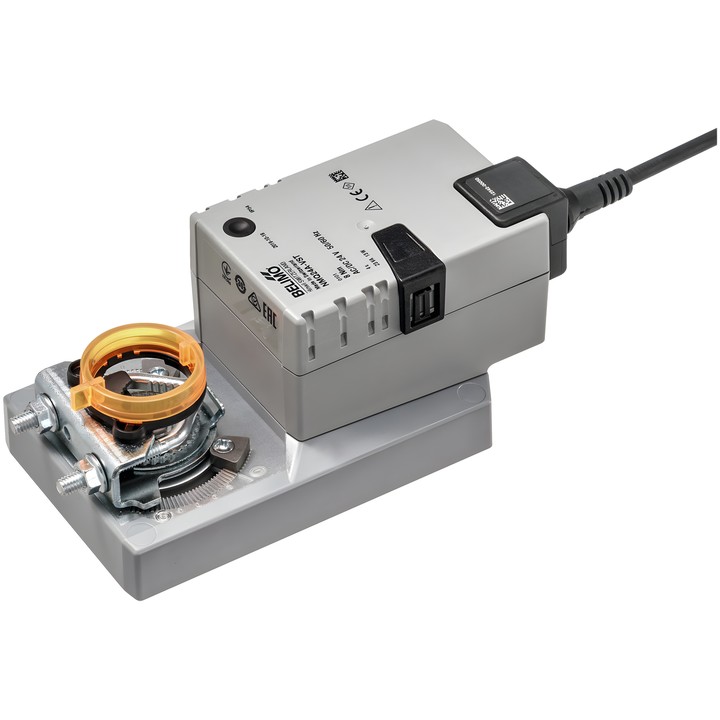

Belimo NMQ24A-VST-RE - rotary actuator for VAV and CAV

Name: Belimo NMQ24A-VST-RE - rotary actuator for VAV and CAV
Brand: Belimo
SKU: NMQ24A-VST-RE
Price: 2444.01 PLN
Availability: OutOfStock

Belimo

zł2,444.01

VAT included

zł1,987.00 tax excluded

Belimo NMQ24A-VST-RE rotary actuator in VAV-Universal retrofit version, designed for VAV and CAV units. Torque 8 Nm, AC/DC 24 V supply, PP communication control and running time 4 s / 90°.

Equipped with a universal shaft clamp 8...26.7 mm and a 0.5 m cable with VST connector. Degree of protection IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NMQ24A-VST-RE

Rotary actuator in VAV-Universal retrofit version, designed for connection to VAV and CAV units in building technical systems. The technical datasheet specifies an air damper size of up to approx. 2 m².

Key features and parameters

Torque: 8 Nm; motor running time: 4 s / 90°.
Nominal voltage: AC/DC 24 V; nominal voltage frequency: 50/60 Hz.
Control: PP communication.
Power consumption during operation: 13 W; at rest: 2 W; power for cable sizing: 23 VA.
Angle of rotation: max. 95°, with adjustable mechanical end stops on both sides.
Manual override using a push-button with lock; mechanical, plug-in position indicator.
Mechanical connection: universal shaft clamp 8...26.7 mm.
Power and control connection: 0.5 m cable with VST connector.
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Adaptation is required after system start-up and after every change to the angle of rotation.
