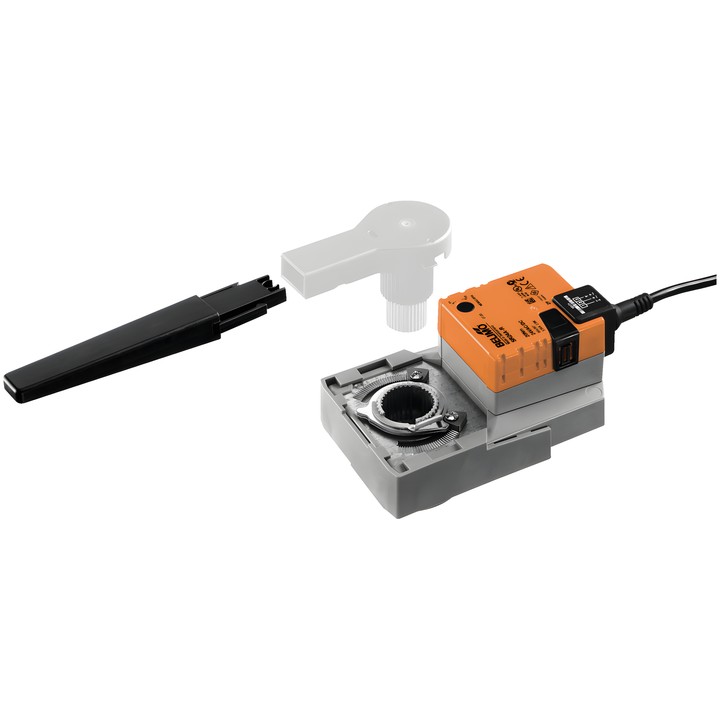

Belimo SR230A-R - rotary actuator for valves

Belimo SR230A-R - rotary actuator for valves

Belimo
zł859.43
VAT included
zł698.72 tax excluded

RetroFIT+ rotary actuator for rotary valves and dampers. Torque 20 Nm, power supply AC 100...240 V, Close/Open or 3-point control, and running time 90 s / 90°.

Delivery in approx. 14 days
Share

Belimo SR230A-R – RetroFIT+ rotary actuator

Designed for rotary valves and dampers. Supports Close/Open and 3-point control.

Key features and technical data

  • Torque: 20 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Motor running time: 90 s / 90°.
  • Power consumption during operation: 3 W; at rest: 0.6 W; wire sizing power: 7 VA.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • Manual adjustment using a push-button with locking option.
  • Mechanical rotation angle limiters and integrated position indicator.
  • Connection flange: F03/F04/F05.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.

The spindle shape adapter is not included.

  • Brand
    Belimo
  • Reference
    SR230A-R
  • EAN13
    7630498114687

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    7 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    90 s / 90°
  • Torque
    20 Nm

Techniczna karta katalogowa

Download (802.15KB)

Instrukcja montażu

Download (358.47KB)

EU Declaration of Conformity – SR230A-R

Download (25.64KB)

Environmental Declaration – SR..

Download (72.79KB)
