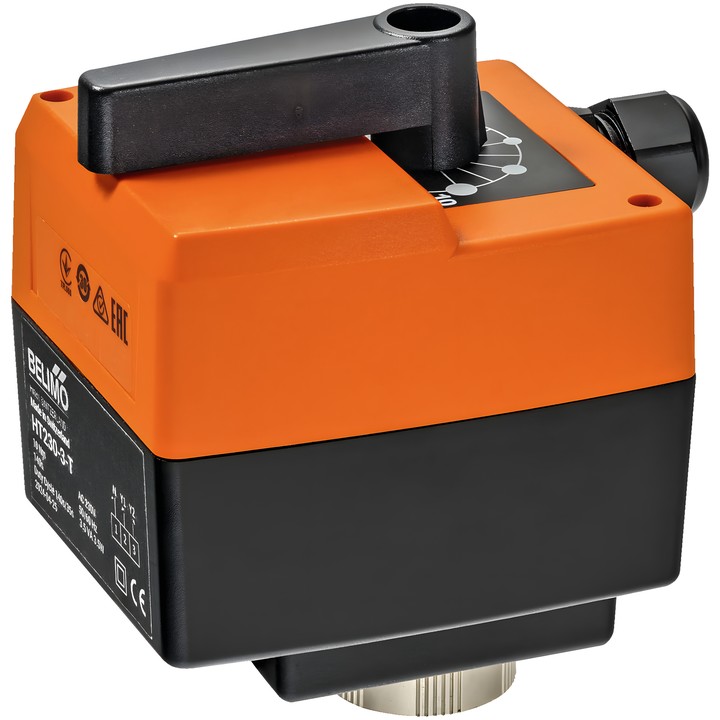

Belimo NRYD24-3-SI - short-stroke actuator for globe valves

Name: Belimo NRYD24-3-SI - short-stroke actuator for globe valves
Brand: Belimo
SKU: NRYD24-3-SI
Price: 1189.41 PLN
Availability: OutOfStock

Belimo

zł1,189.41

VAT included

zł967.00 tax excluded

Short-stroke actuator for Siemens globe valves in HVAC systems. Force 400 N, AC 24 V supply, 3-point control and 5.5 mm stroke.

Motor running time is 35 s / 5.5 mm. Protection rating: IP40.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NRYD24-3-SI

Short-stroke actuator designed to operate Siemens short-stroke globe valves in stationary HVAC systems.

Key features and technical data

Actuator force: 400 N; stroke: 5.5 mm.
Rated voltage: AC 24 V; frequency: 50/60 Hz; voltage range: AC 19.2...28.8 V.
Control: 3-point; motor running time: 35 s / 5.5 mm.
Power consumption during operation: 1.5 W; wire sizing rating: 3 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Actuator mounting: G 3/4"; mounted directly on the valve using a knurled nut.
Manual operation: temporary or permanent disengagement of the gear train using the knob on the housing.
Position indicator with reversible scale plate.
Overload protection and automatic stop when the end position is reached.
IEC/EN protection rating: IP40; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Protect the actuator from moisture; it is not intended for outdoor use. Power must be supplied via an isolating transformer.

Brand

Belimo
Reference

NRYD24-3-SI
EAN13

7630498121418

AC/DC voltage

AC 24 V
Power consumption (running)

1.5 W
Rated power

3 VA
Power supply control connection

Cable 1 m, 3x 0.75 mm²
Control type

3-point
Protection rating

IP40
Force

400 N
Manual override

Temporary and permanent gear disengagement using the knob on the housing
Stroke

5.5 mm
Running time (motor)

35 s / 5.5 mm
