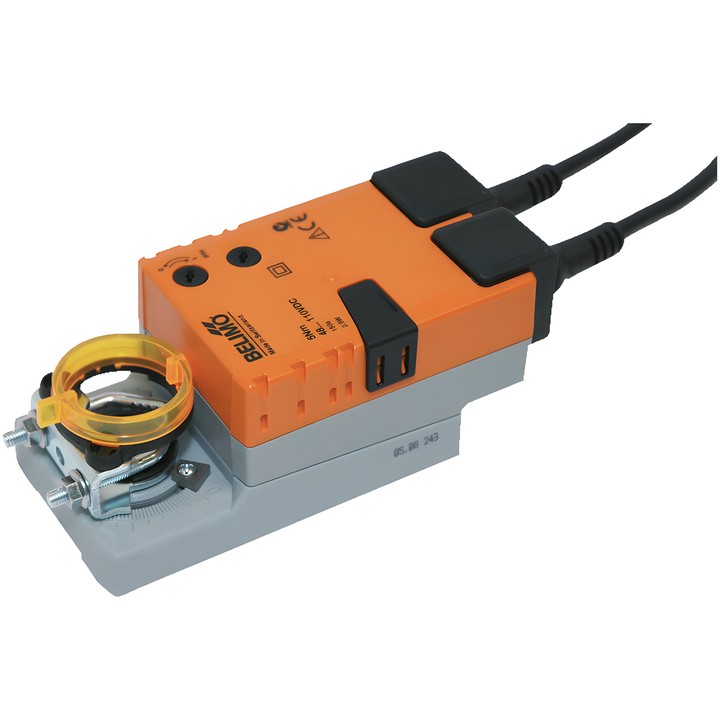

Belimo LM72A-S - rotary actuator for dampers

Belimo LM72A-S - rotary actuator for dampers

Belimo
zł1,394.82
VAT included
zł1,134.00 tax excluded

Belimo LM72A-S rotary actuator for controlling dampers in building services systems. Torque 5 Nm, nominal voltage DC 48...110 V and 3-point Close/Open control.

Running time is 150 s / 90°. The actuator has a built-in 1x SPDT auxiliary switch, universal clamp 6...20 mm and IP54 protection rating.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LM72A-S rotary actuator

The LM72A-S model is designed to control dampers in building services systems. According to the technical datasheet, it is intended for air dampers with an area of up to approx. 1 m².

Key features

  • Torque: 5 Nm; nominal voltage: DC 48...110 V.
  • Control: 3-point Close/Open; motor running time: 150 s / 90°.
  • Built-in, adjustable 1x SPDT auxiliary switch, 0...100%.
  • Maximum rotation angle: 95°; can be limited on both sides using adjustable mechanical stops.
  • Direction of rotation selected by switch: 0 (counter-clockwise) / 1 (clockwise).
  • Manual adjustment using a push button with locking option; mechanical position indicator.
  • Mounted on the damper shaft using a universal clamp 6...20 mm; anti-rotation mechanism.
  • Power and control connection and auxiliary switch connection: separate 1 m cables, 3x 0.75 mm².
  • Power consumption while moving: 2.5 W; in the rest position: 2 W; for cable sizing: 2.5 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.

  • Brand
    Belimo
  • Reference
    LM72A-S
  • EAN13
    7630498120992

  • AC/DC voltage
    DC 48...110 V
  • Auxiliary switch connection
    Cable 1 m, 3x 0.75 mm²
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    2 W
  • Rated power
    2.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Auxiliary contacts
    1x SPDT
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm
