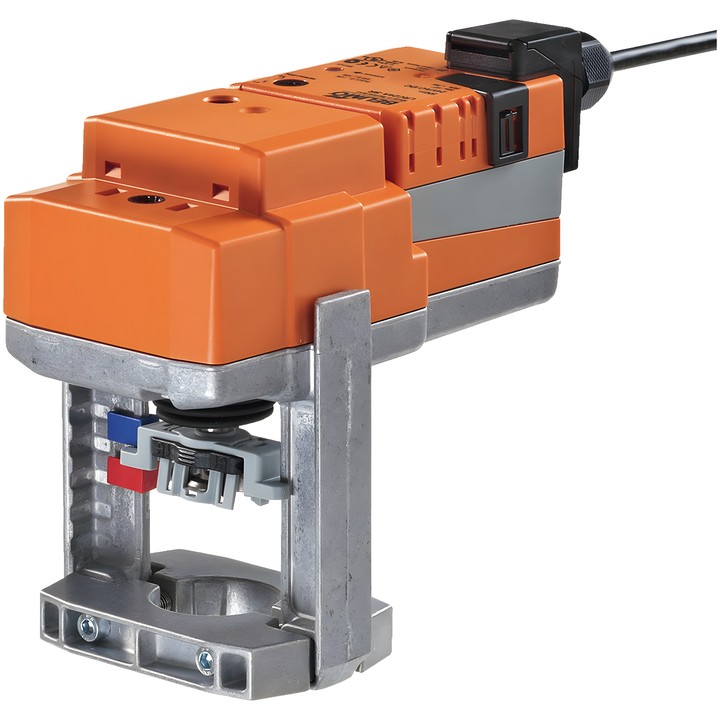

Belimo NV24A-SR-TPC - linear actuator for globe valves

Belimo NV24A-SR-TPC actuator

Modulating actuator for 2-way and 3-way globe valves, designed for stationary heating, ventilation and air conditioning installations. The Y control signal determines the actuator position, while the U feedback voltage is used for electrical position indication.

Key features and specifications

• Actuator force: 1000 N; stroke: 20 mm.
• Supply: AC/DC 24 V, 50/60 Hz; voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
• Modulating control: 2...10 V; position feedback signal: 2...10 V.
• Travel time: 150 s / 20 mm; positioning accuracy: ±5%.
• Power consumption during operation: 1.5 W; in the rest position: 0.5 W; for wire sizing: 3 VA.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm² (4 mm² terminal).
• Push-button manual override with option to lock; mechanical stroke indication.
• Setting range adaptation: manual, automatic on first power-up.
• IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

The actuator is overload-protected and stops automatically when the end stop is reached. Direct mounting on the valve is via clamping jaws.
