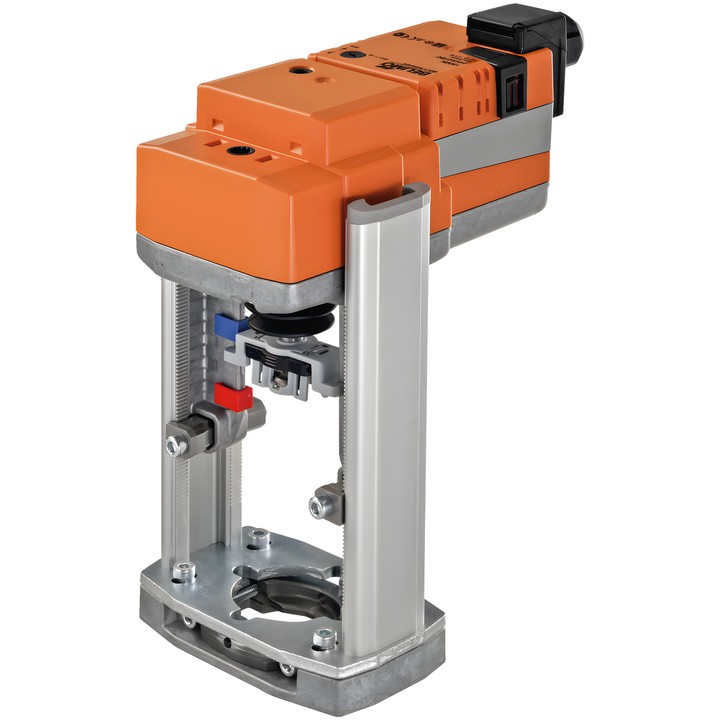

Belimo NVC24A-RE - linear actuator for globe valves

Name: Belimo NVC24A-RE - linear actuator for globe valves
Brand: Belimo
SKU: NVC24A-RE
Price: 1855.64 PLN
Availability: BackOrder

Belimo

zł1,855.64

VAT included

zł1,508.65 tax excluded

RetroFIT+ linear actuator for 2- and 3-way globe valves. 1000 N force, AC/DC 24 V supply, Close/Open or 3-point control, 20 mm stroke and 35 s / 20 mm running time.

Equipped with 4 mm² terminals (cable ø4...10 mm), manual override by push-button with locking option, and IP54 protection.

Delivery in approx. 14 days

Belimo NVC24A-RE – actuator for globe valves

The NVC24A-RE is a RetroFIT+ linear actuator for 2- and 3-way globe valves. The RetroFIT+ series is designed for installation on valves from various manufacturers using a bracket and universal valve neck and stem adapters.

Key features

Actuator force: 1000 N; stroke: 20 mm.
Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
Control: Close/Open or 3-point.
Motor running time: 35 s / 20 mm; constant running time, independent of load.
Power consumption: 1.5 W during operation and 0.5 W at rest; power for wire sizing: 3 VA.
Power and control connection: 4 mm² terminals (cable ø4...10 mm).
Manual override by push-button with locking option; mechanical position indicator for 5...20 mm stroke.
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

The actuator is overload-protected and stops automatically when the end position is reached. The direction-of-motion switch allows the stroke direction to be changed during normal operation.
