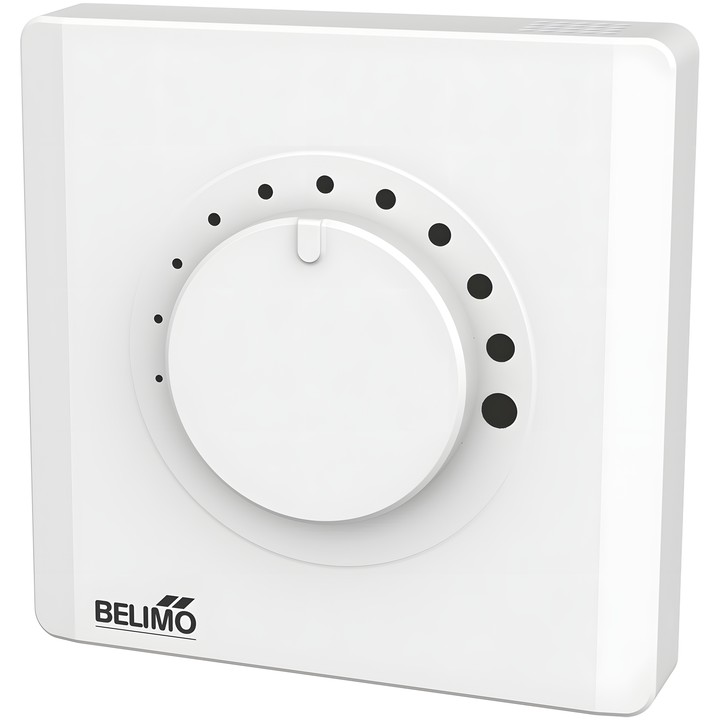

Belimo P-01RT-1F-0 - passive room temperature setpoint adjuster

Name: Belimo P-01RT-1F-0 - passive room temperature setpoint adjuster
Brand: Belimo
SKU: P-01RT-1F-0
Price: 106.64 PLN
Availability: BackOrder

Belimo

zł106.64

VAT included

zł86.70 tax excluded

Passive Belimo P-01RT-1F-0 room unit for measuring room temperature and setting the setpoint. Output signal NTC1k8; potentiometer 0.7...1.3 kΩ.

Polycarbonate housing in white RAL 9003, degree of protection IP30.

Delivery in approx. 14 days

Belimo P-01RT-1F-0 – passive room temperature setpoint adjuster

The device measures room air temperature and allows the temperature setpoint to be adjusted. It can be connected to existing controllers from other manufacturers.

Key features

Passive temperature sensor output signal: NTC1k8.
Potentiometer: 0.7...1.3 kΩ; typical accuracy: ±15%.
Temperature measuring range: 0...50°C [32...122°F]; NTC1k8 accuracy: ±0.5°C @ 25°C [±0.9°F @ 77°F].
NTC1k8 measuring current: <0.1 mA @ 25°C [77°F].
Typical time constant τ (63%) in a room: 360 s.
Spring terminal for 0.5...1.5 mm² wires; cable openings at the rear and at the top and bottom of the housing.
PC housing, white, RAL 9003; dimensions 86x86x16.5 mm (HxWxD).
Degree of protection IEC/EN: IP30; protection class IEC/EN: III, PELV.
Ambient temperature: 0...50°C [32...122°F]; ambient humidity: max. 95% RH, non-condensing.
