Belimo P-22RTM-1U00A-2B - CO₂, humidity and temperature room sensor

Name: Belimo P-22RTM-1U00A-2B - CO₂, humidity and temperature room sensor
Brand: Belimo
SKU: P-22RTM-1U00A-2B
Price: 1480.61 PLN
Availability: BackOrder

Belimo

zł1,480.61

VAT included

zł1,203.75 tax excluded

Active room sensor for measuring CO₂, humidity and temperature, and adjusting room temperature and ventilation setpoints. Supports Modbus RTU, BACnet MS/TP and MP-Bus.

NFC communication enables the Belimo Display App to read values and adjust setpoints. Black polycarbonate housing, RAL 9004.

Delivery in approx. 14 days

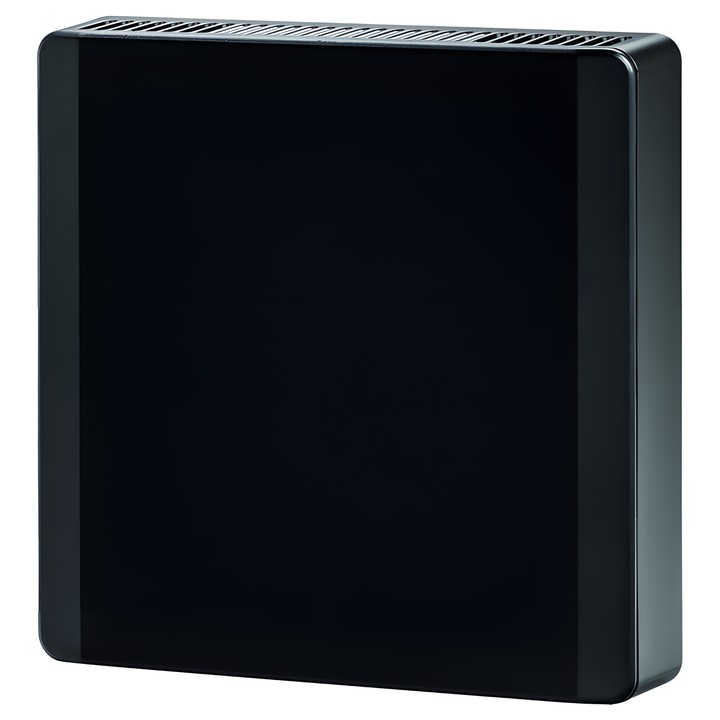

Belimo P-22RTM-1U00A-2B room sensor

The device measures room CO₂ concentration, humidity and temperature, and provides the dew point value. It enables adjustment of room temperature and ventilation setpoints. It is designed for fixed heating, ventilation and air-conditioning installations.

Key features and specifications

CO₂ measuring range: 0...2000 ppm; dual-channel NDIR sensing element.
Humidity measuring range: 0...100% RH; dew point measuring range: -50...50°C [-60...120°F].
Temperature measuring range: 0...50°C [32...122°F]; temperature measurement accuracy: ±0.3°C @ 25°C [±0.5°F @ 77°F].
Communication: Modbus RTU, BACnet MS/TP, MP-Bus.
1 digital input for a volt-free contact.
The Belimo Display App reads room values and adjusts setpoints via NFC; commissioning and parameterisation can be performed using Belimo Assistant 2.
Rated voltage: AC/DC 24 V; electrical connection: spring-clamp terminal 0.2...2.5 mm².
Housing: polycarbonate, black, RAL 9004; IEC/EN housing protection rating: IP30.
