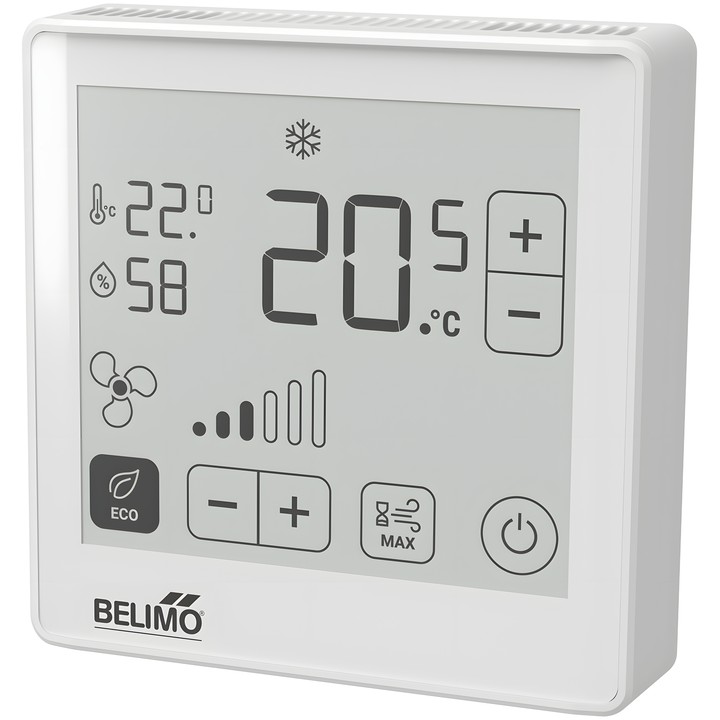

Belimo P-22RTH-1900D-1 - room humidity and temperature sensor

Name: Belimo P-22RTH-1900D-1 - room humidity and temperature sensor
Brand: Belimo
SKU: P-22RTH-1900D-1
Price: 1394.82 PLN
Availability: OutOfStock

Belimo

zł1,394.82

VAT included

zł1,134.00 tax excluded

Belimo P-22RTH-1900D-1 room sensor for measuring temperature and relative humidity. Features a touch ePaper display, MP-Bus communication and three voltage outputs configurable via NFC.

AC/DC 24 V supply; available output ranges: 0...5 V, 0...10 V, 2...10 V.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo P-22RTH-1900D-1

Room humidity and temperature sensor with a touch ePaper display. The P-22RTH-1900D-1 version supports MP-Bus communication and has three analogue voltage outputs.

Key features and specifications

Measured values: temperature and relative humidity; the type overview also lists dew point.
Temperature measuring range: 0...50°C [32...122°F].
Humidity measuring range: factory setting 0...100% RH.
Nominal voltage: AC/DC 24 V.
Communication: MP-Bus.
Voltage outputs: 3 x 0...5 V, 0...10 V, 2...10 V; analogue outputs configurable via NFC. By default, the outputs are assigned to temperature, temperature setpoint and humidity.
Display: touch ePaper.
Degree of protection IEC/EN: IP30.
Housing: PC, white, RAL 9003; dimensions 86x86x18 mm (HxWxD).

The device can be configured using Belimo Assistant 2.

Brand

Belimo
Reference

P-22RTH-1900D-1
EAN13

7630498121524

Electrical connection

Terminals
Measured values

Temperature Humidity
Output signal

0...5 V 0...10 V 2...10 V MP-Bus
Humidity measuring range

Factory setting: 0...100% RH
AC/DC voltage

AC/DC 24 V
Temperature measuring range

0...50°C [32...122°F]
Active sensor output note

Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC min. resistance 5 kΩ
Display type

Touchscreen ePaper display
Output voltage range [Range]

2 x 0...5 V, 0...10 V, 2...10 V (Type P-22RT-1900D-1) 3 x 0...5 V, 0...10 V, 2...10 V (Type P-22RTH-1900D-1, P-22RTM-1900D-1)
Communication

MP-Bus
