The Belimo P-22RTM-1U00D-2 room unit measures CO₂, relative humidity and temperature, and allows temperature and ventilation setpoints to be adjusted. It features a touch ePaper display, an LED and an AC/DC 24 V power supply.

It supports Modbus RTU, BACnet MS/TP and MP-Bus communication. Configuration is available via NFC using Belimo Assistant 2.

Delivery in approx. 14 days

Belimo P-22RTM-1U00D-2

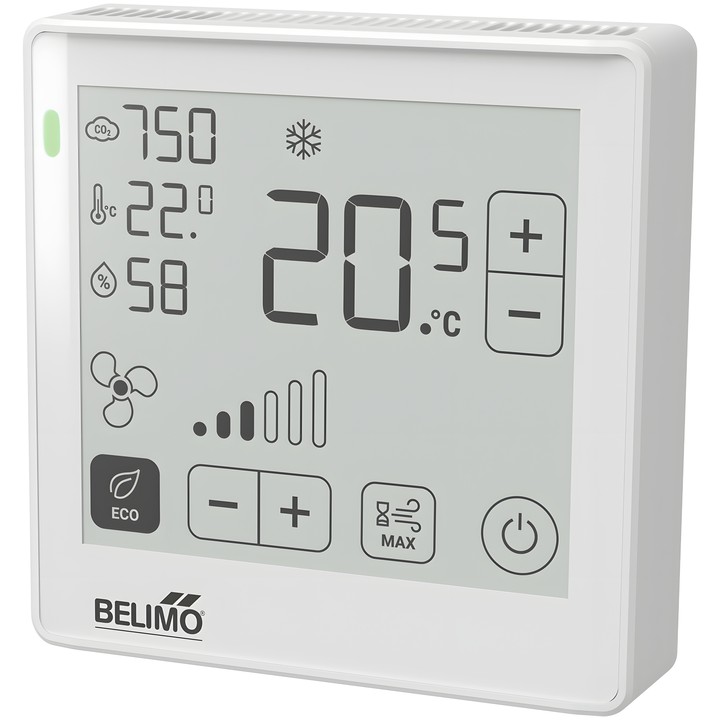

Room unit for measuring CO₂, relative humidity and temperature, and adjusting temperature and ventilation setpoints. It is equipped with a touch ePaper display and an LED.

Key features and specifications

Measured values: CO₂, relative humidity, dew point and temperature.
CO₂ measuring range: 0...2000 ppm; NDIR dual channel measurement technology.
Humidity measuring range: 0...100% RH; temperature measuring range: 0...50°C [32...122°F].
Communication: Modbus RTU, BACnet MS/TP, MP-Bus.
Power supply: AC/DC 24 V.
Touch ePaper display and LED; the LED supports CO₂ level indication.
1x digital input for a volt-free contact.
Configuration via NFC using Belimo Assistant 2.
IEC/EN protection rating: IP30.
Housing: PC, white, RAL 9003; dimensions: 86x86x24 mm (HxWxD).
Electrical connection: spring terminals 0.25...1.5 mm².
