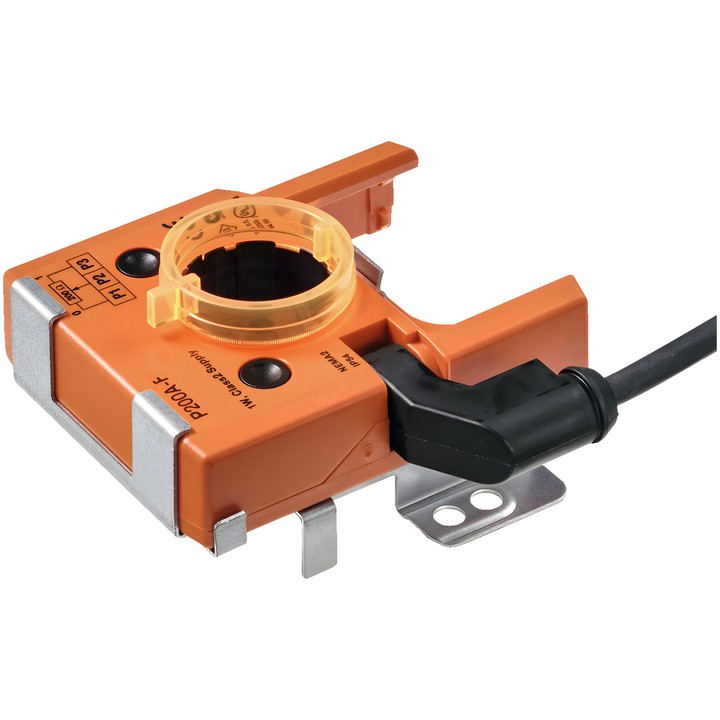

Belimo P200A-F - feedback potentiometer

Belimo P200A-F – feedback potentiometer

Feedback potentiometer module for spring-return actuators NF..A.., SF..A.. and LF... It is used for modulating damper control with controllers that use a continuous feedback signal. It can also be used in damper position indication systems or as a positioner for actuators operating in parallel.

Key features and technical data

• Nominal resistance: 200 Ω; tolerance: ±5%.
• Maximum load: 1 W; linearity: ±2%; resolution: Min. 1%.
• Residual resistance: Max. 5% on both sides.
• Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].
• Mounted directly on the actuator hollow shaft using an adapter; mounting accessories included.

Wire colours: S1 – violet, S2 – red, S3 – white.
