Belimo P5000A GR - feedback potentiometer

Belimo P5000A GR feedback potentiometer

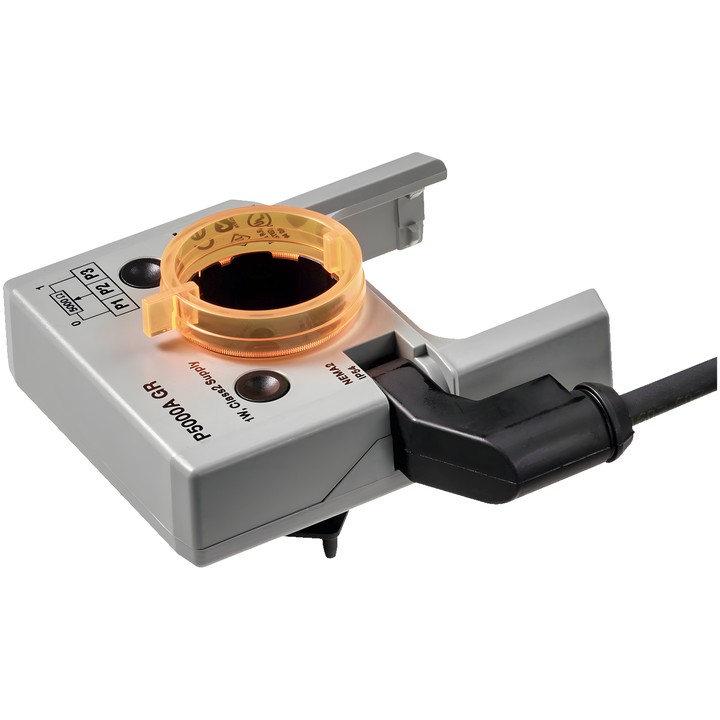

Clip-on potentiometer for damper actuators and rotary actuators. It transfers the position to the feedback potentiometer via an adapter plate fitted onto the actuator shaft clamp of a damper actuator or the position indicator of a rotary actuator.

Key parameters

• Nominal resistance: 5 kΩ; tolerance: ±5%.
• Load capacity: Max. 1 W; linearity: ±2%.
• Resolution: Min. 1%; residual resistance: Max. 5% on both sides.
• Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
• Protection rating IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].
• Cover and base housing colour: grey.

Installation and application

The potentiometer is mounted directly on the actuator shaft clamp of a damper actuator or on the position indicator of a rotary actuator. It is designed for modulating damper control in combination with controllers featuring fixed feedback. It can also be used with commercially available damper position indication systems or as a positioner for actuators operating in parallel.
