Product unavailable

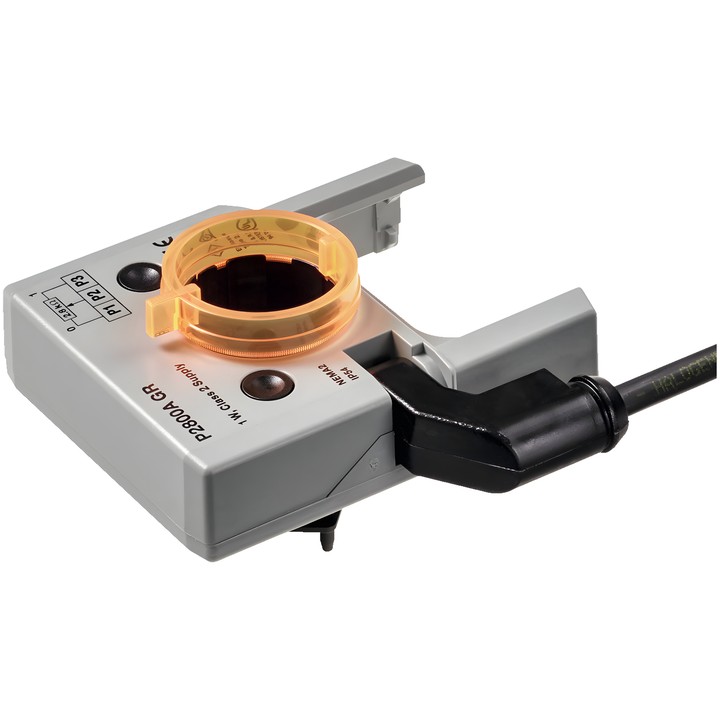

Belimo P2800A GR - feedback potentiometer

Name: Belimo P2800A GR - feedback potentiometer
Brand: Belimo
SKU: P2800A GR
Price: 722.01 PLN
Availability: OutOfStock

Belimo

zł722.01

VAT included

zł587.00 tax excluded

Surface-mounted feedback potentiometer for damper actuators and rotary actuators. Nominal resistance 2.8 kΩ; grey housing.

Connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free). Degree of protection IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo P2800A GR feedback potentiometer

Potentiometer for damper actuators and rotary actuators. The mounting plate transfers the position from the shaft clamp of the damper actuator or the position indicator of the rotary actuator to the potentiometer. It is mounted directly on the shaft clamp or position indicator.

Used for modulating damper control with controllers featuring fixed feedback. It can also work with damper position indication systems and serve as a setpoint device for actuators operating in parallel.

Key technical data

Nominal resistance: 2.8 kΩ; tolerance: ±5%.
Power rating: Max. 1 W; linearity: ±2%; resolution: Min. 1%.
Residual resistance: Max. 5% on both sides.
Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].
Cover and housing base colour: grey.
