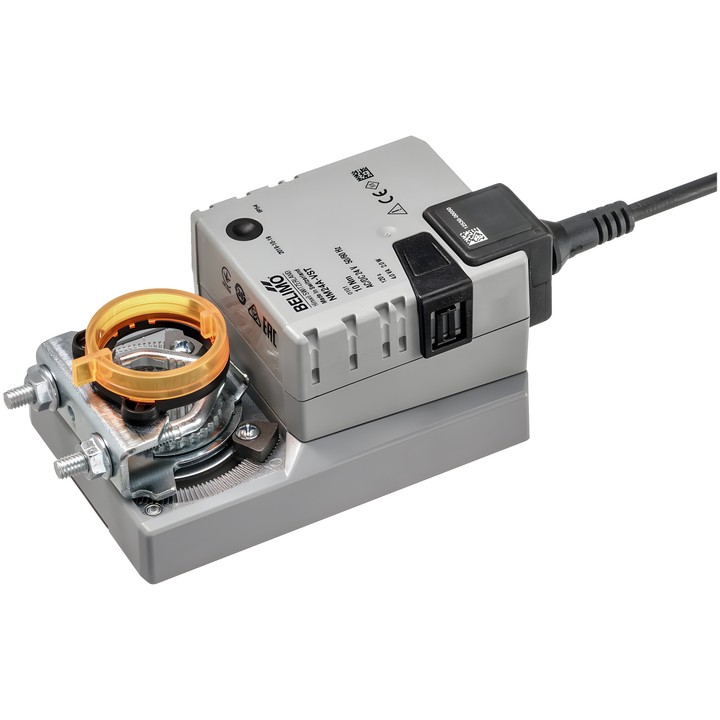

Belimo NM24A-VST - rotary actuator for VAV/CAV dampers

Name: Belimo NM24A-VST - rotary actuator for VAV/CAV dampers
Brand: Belimo
SKU: NM24A-VST
Price: 1383.75 PLN
Availability: OutOfStock

Belimo

zł1,383.75

VAT included

zł1,125.00 tax excluded

VAV-Universal rotary actuator for VAV and CAV units in building services systems. Torque 10 Nm, AC/DC 24 V supply and communicative PP control.

Motor running time is 120 s / 90°. Electrical connection is via a 0.5 m cable with VST connector; IEC/EN protection rating IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NM24A-VST

VAV-Universal rotary actuator for VAV and CAV units in building services systems. Designed for air dampers with an area of up to approx. 2 m².

Key features and specifications

Motor torque: 10 Nm.
Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
Control: communicative PP.
Power consumption during operation: 2 W; in the rest position: 0.4 W; for wire sizing: 4 VA.
Motor running time: 120 s / 90°; rotation angle: max. 95°.
Rotation angle adjustable using mechanical stops on both sides.
Manual adjustment by pushbutton with locking option; mechanical, plug-in position indicator.
Mechanical connection: universal shaft clamp 8...26.7 mm.
Power and control connection: 0.5 m cable with VST connector.
IEC/EN protection rating IP54; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

After system start-up and after every change to the rotation angle, adaptation is required by pressing the adaptation button once.
