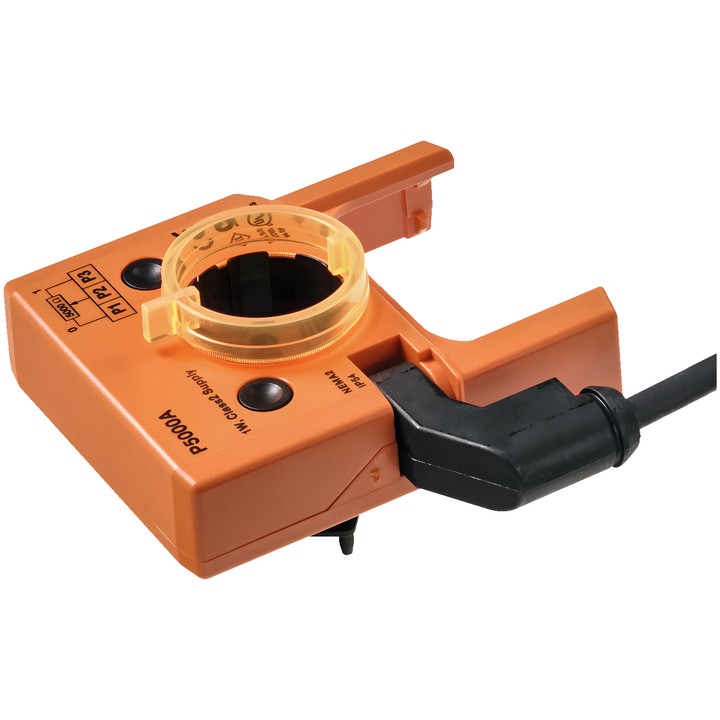

Belimo P5000A - 5 kΩ feedback potentiometer

Belimo P5000A feedback potentiometer

The P5000A transmits the actuator position to a feedback potentiometer. It is designed for damper actuators and rotary actuators. It is mounted directly on the damper actuator shaft clamp or on the position indicator of a rotary actuator.

Key features and specifications

• Rated resistance: 5 kΩ; tolerance: ±5%.
• Maximum load: 1 W; linearity: ±2%; resolution: Min. 1%.
• Residual resistance: Max. 5% on both sides.
• Connection: 1 m cable, 3 x 0.75 mm², halogen-free.
• IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].

The potentiometer can be used for modulating damper control with controllers featuring fixed feedback, for indicating damper position, or as a controller for actuators operating in parallel.
