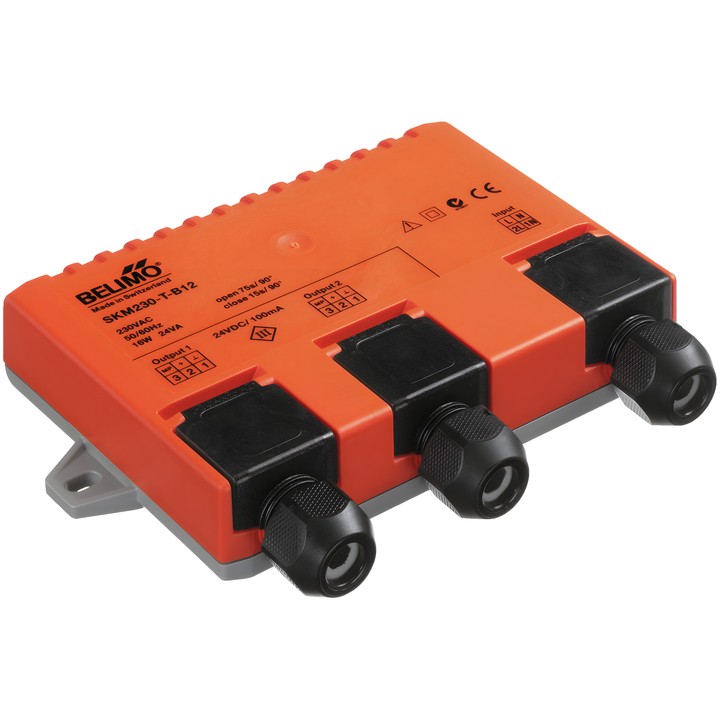

Belimo SKM230-T-B12.1 - power supply module for damper actuators
Price:
zł1,195.56
VAT included
zł972.00 tax excluded
Belimo SKM230-T-B12.1 power supply module for one or two CM24K-... damper actuators. AC 230 V supply, Open/Close control and a safety function that closes the actuators in the event of a power failure.
Terminal connection, IP40 protection rating. Multipack: 10 pcs.
Belimo SKM230-T-B12.1 power supply module
Designed for use with one or two CM24K-... damper actuators. In the event of a power failure or power being switched off, energy stored in the module enables the connected actuators to move to the closed position.
Key features and specifications
- Nominal voltage: AC 230 V; frequency: 50/60 Hz; voltage range: AC 198...264 V.
- Control: Open/Close.
- Power consumption during operation: 16 W; in standby: 1.5 W; for cable sizing: 24 VA.
- Power and control connection: terminals.
- Maximum connection length between actuator and module: 200 m.
- IEC/EN protection class: II, reinforced insulation; IEC/EN protection rating: IP40.
- Ambient temperature: -30...50°C [-22...122°F].
- Multipack: 10 pcs.
-
Brand
-
ReferenceSKM230-T-B12.1
-
EAN137630498122125
-
AC/DC voltageAC 230 V
-
Power consumption (running)16 W
-
Power consumption (holding)1.5 W
-
Rated power24 VA
-
Protection ratingIP40
-
Ambient temperature-30...50°C [-22...122°F]
