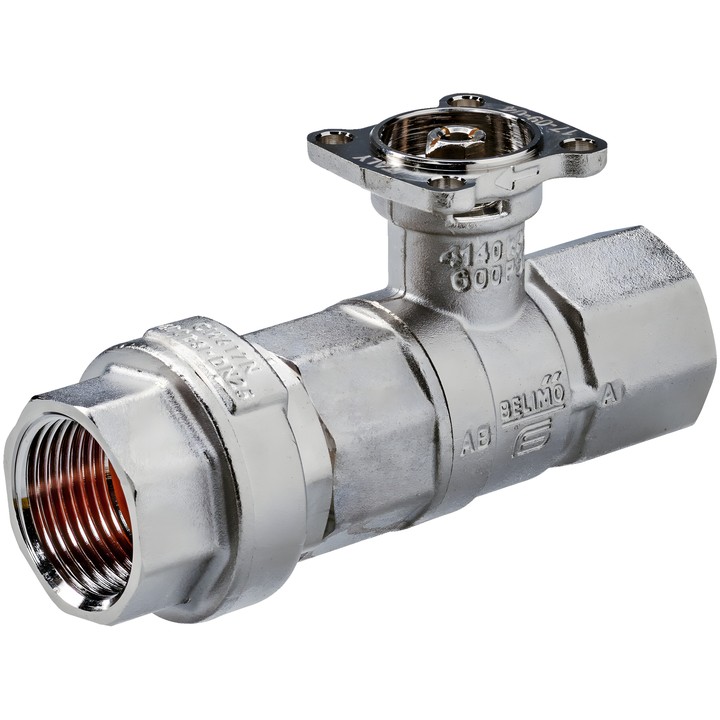

Belimo R225FL-J - 2-way PI flow-limiting valve

Name: Belimo R225FL-J - 2-way PI flow-limiting valve
Brand: Belimo
SKU: R225FL-J
Price: 566.83 PLN
Availability: BackOrder

Belimo

zł566.83

VAT included

zł460.84 tax excluded

Belimo R225FL-J is a 2-way PI flow-limiting valve (PIFLV) for water systems. It has DN 25, Rp 1" female thread, PN 25 and a nominal flow rate V'nom of 3600 l/h.

The differential pressure range is ∆p 20...280 kPa, and the medium temperature is 2...60°C [36...140°F].

Delivery in approx. 14 days

Belimo R225FL-J – technical data

2-way ball valve with an integrated PI flow limiter, designed for closed water systems. Within the differential pressure range of 20...280 kPa, the limiter maintains a constant flow rate when the valve is opened to 90°.

Nominal diameter: DN 25; nominal pressure: PN 25.
Connection: Rp 1" female thread.
Nominal flow rate V'nom: 3600 l/h (1.00 l/s).
Medium: water; medium temperature: 2...60°C [36...140°F].
Differential pressure: ∆p 20...280 kPa; 50 kPa recommended for quiet operation.
Closing pressure: 520 kPa.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Body and stem: nickel-plated brass; closing element: chrome-plated brass.
Rotation angle: 90°.

Installation instructions

Permitted mounting position: from vertical to horizontal relative to the stem. Do not install with the stem pointing downwards. Observe the flow direction indicated by the arrow on the body.
