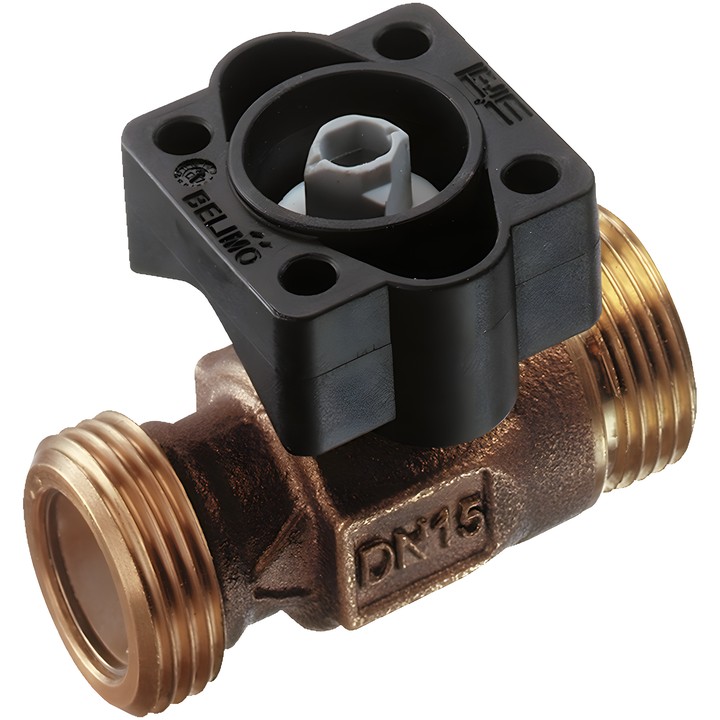

Belimo R420D - 2-way on/off ball valve

Name: Belimo R420D - 2-way on/off ball valve
Brand: Belimo
SKU: R420D
Price: 924.03 PLN
Availability: BackOrder

Belimo

zł924.03

VAT included

zł751.24 tax excluded

Belimo R420D is a 2-way on/off ball valve, DN 20, PN 40, with G 1 1/4" male thread. Kvs is 25 m³/h.

Designed for water and water with a maximum of 50% vol. glycol. Fluid temperature: 2...130°C [36...266°F].

Delivery in approx. 14 days

Belimo R420D – technical data

2-way on/off ball valve with male thread. The body is made of low-lead bronze (CuSn4Zn6Pb3). The valve is operated by a rotary actuator controlled by an on/off signal.

DN 20, PN 40; connection: G 1 1/4" male thread.
Kvs: 25 m³/h.
Fluid: water, water with a maximum of 50% vol. glycol; drinking water on request.
Fluid temperature: 2...130°C [36...266°F]. The permissible temperature may depend on the actuator type.
Maximum differential pressure Δpmax: 800 kPa; closing pressure ∆ps: 1400 kPa.
Bubble-tight, leakage rate class A (EN 12266-1).
Rotational angle: 90°.

Permissible mounting position: from vertical to horizontal in relation to the stem. Do not install with the stem pointing downwards. Observe the flow direction indicated by the arrow on the body.

Brand

Belimo
Reference

R420D
EAN13

7630498121982

Kvs

25 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

2...130°C [36...266°F]
Fluid temperature, note

The permissible medium temperature may be limited depending on the actuator type. The limitations can be found in the relevant actuator data sheets.
Differential pressure

∆pmax 800 kPa
Closing pressure

1400 kPa
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
