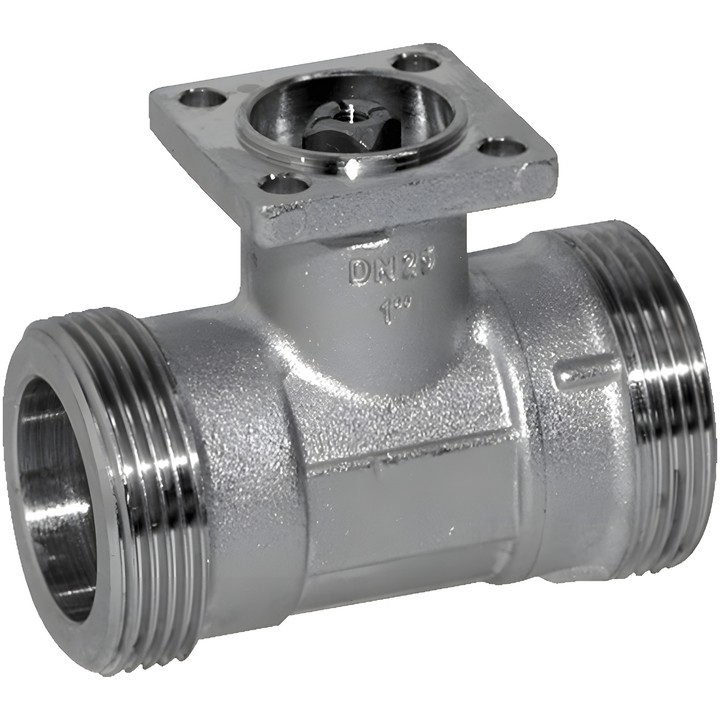

Belimo R440 - 2-way on/off ball valve

Belimo R440 - 2-way on/off ball valve

Belimo
zł759.35
VAT included
zł617.36 tax excluded

Belimo R440 is a 2-way on/off ball valve with a nominal diameter of DN 40, G 2 1/4" male thread, PN 25 and Kvs 32 m³/h. It is designed for shut-off on the water side and on/off control in ventilation and heating systems.

Medium: water or water with a maximum of 50% by volume glycol. Medium temperature: -10...100°C [14...212°F].

Delivery in approx. 14 days
Share

Belimo R440 – technical data

2-way on/off ball valve with male thread. The valve is operated by a rotary actuator controlled by an on/off signal.

  • Nominal diameter: DN 40; male thread: G 2 1/4"; PN 25.
  • Kvs: 32 m³/h; ps: 1600 kPa.
  • Medium: water, water with a maximum of 50% by volume glycol; drinking water on request.
  • Medium temperature: -10...100°C [14...212°F]. A valve neck extension is recommended at -10...2°C. The permissible range may depend on the actuator type.
  • Differential pressure: ∆pmax 400 kPa; closing pressure: 1400 kPa. For quiet operation: 200 kPa.
  • Tightness: bubble-tight, leakage rate class A (EN 12266-1).
  • Body: nickel-plated brass; closing element and stem: stainless steel; stem seal: EPDM O-ring; seat: PTFE, Viton O-ring.
  • Rotation angle: 90°. Installation is permitted from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.

  • Brand
    Belimo
  • Reference
    R440
  • EAN13
    7630498108228

  • Kvs
    32 m³/h
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    2-way
  • Fluid temperature
    -10...100°C [14...212°F]
  • Fluid temperature, note
    At a fluid temperature of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for limitations.
  • Differential pressure
    ∆pmax 400 kPa
  • Closing pressure
    1400 kPa
  • Differential pressure note
    200 kPa for quiet operation
  • Permissible leakage
    Bubble-tight, leakage class A
  • Pipe connection
    External thread

Techniczna karta katalogowa

Download (645.36KB)

Instrukcja montażu

Download (556.22KB)

Techniczna karta katalogowa – R4.. open-close

Download (647.28KB)

EU Declaration of Conformity – R5.. / R4.. DN 15...50

Download (55.18KB)

Environmental Declaration – R4..

Download (70.44KB)
