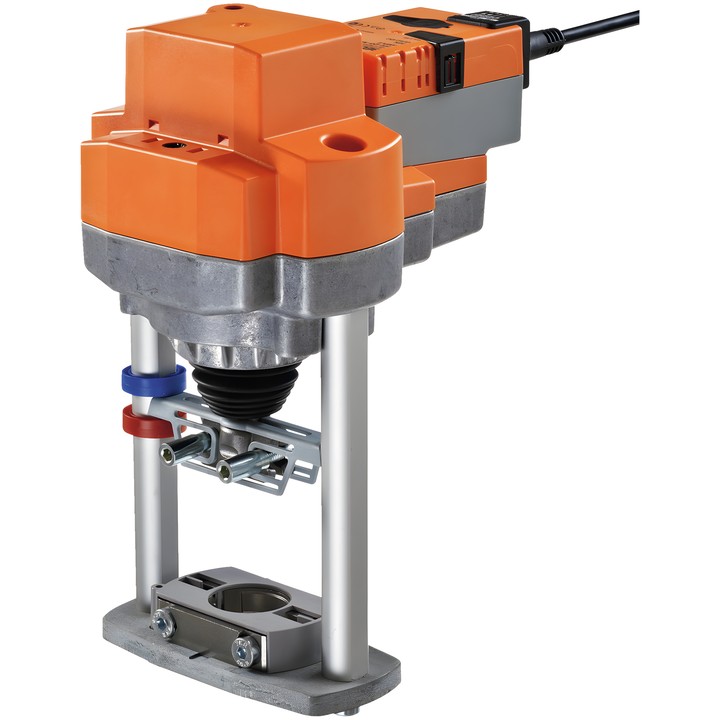

Belimo RV24A-SR - actuator for globe valves

Name: Belimo RV24A-SR - actuator for globe valves
Brand: Belimo
SKU: RV24A-SR
Price: 3708.75 PLN
Availability: BackOrder

Belimo

zł3,708.75

VAT included

zł3,015.24 tax excluded

Belimo linear actuator for 2- and 3-way globe valves. Force 4500 N, AC/DC 24 V supply, 2...10 V modulating control and 50 mm stroke.

Travel time is 150 s / 50 mm. The actuator provides a 2...10 V position feedback signal and manual override by push-button, with the option to lock it.

Delivery in approx. 14 days

Belimo RV24A-SR actuator

Modulating linear actuator for 2- and 3-way globe valves. The control signal Y determines the actuator position, while the feedback voltage U is used to electrically indicate its position.

Key features and specifications

Actuating force: 4500 N; stroke: 50 mm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
Travel time: 150 s / 50 mm.
Power consumption during operation: 6 W; at rest: 1.5 W; power rating for cable sizing: 11 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Manual override by push-button, with the option to lock it; mechanical position indicator.
Setpoint range adaptation: manual, automatic at first power-up.
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: 0...50°C [32...122°F].

The actuator is designed for stationary heating, ventilation and air conditioning installations. Direct mounting on the valve is performed using clamping jaws.
