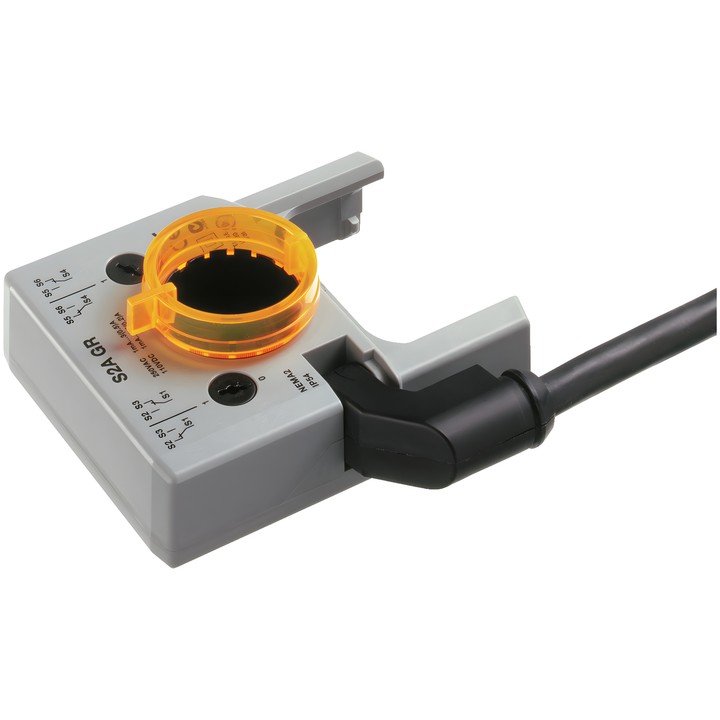

Belimo S2A GR - Clip-on auxiliary switch

Name: Belimo S2A GR - Clip-on auxiliary switch
Brand: Belimo
SKU: S2A GR
Price: 619.92 PLN
Availability: OutOfStock

Belimo

zł619.92

VAT included

zł504.00 tax excluded

Grey clip-on auxiliary switch for damper actuators and rotary actuators. It has two 2x SPDT contacts with switching points adjustable across 0...100 %.

Connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free). Protection rating IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo S2A GR – auxiliary switch

Auxiliary switch for position indication or switching functions at a selected actuator angle setting for a damper actuator or rotary actuator. The switching points can be set across the actuator's full rotation range.

Key features and technical data

Auxiliary contacts: 2x SPDT; adjustable switching points 0...100 %.
Contact rating: 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V; 1 mA...0.5 A (0.2 A inductive; L/R = 3.4 ms), DC 5 V...DC 110 V.
Connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free).
Mounts directly on the shaft clamp of a damper actuator or on the position indicator of a rotary actuator.
Protection rating: IP54; NEMA 2; UL Enclosure Type 2 housing.
Ambient temperature: -30...50°C [-22...122°F].
Cover and housing base colour: grey.

Adjust the auxiliary switch only after disconnecting the power supply.
